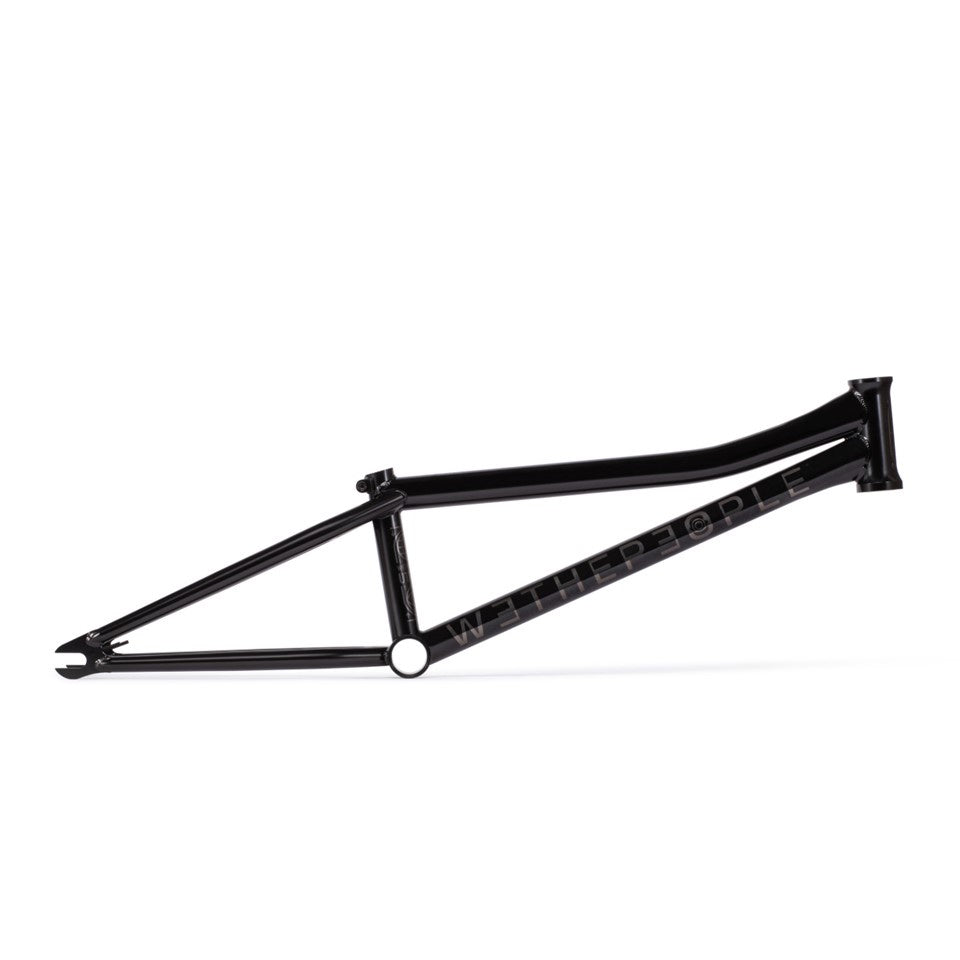

WTP - UTOPIA FRAME

A pure-bred Flatland machine, the Utopia Frame is the most advanced flatland specific frame we’ve ever made. Based around modern flatland geometry, a kinked top tube for extra clearance and all new super-lightweight hydroformed tubing, this is one of the only flatland frames on the market backed up by a lifetime guarantee, so you know it’s built to last.

SPECIFICATIONS

TUBING: butted, Japanese seamless 4130 crmo tubing

BOTTOM BRACKET: 74mm Spanish size, cnc machined and heat-treated

HEAD TUBE: 110mm cnc machined and heat-treated, integ. h/set

DROPOUTS: laser cut and cnc machined 6mm heat-treated 4130 crmo, perfect shape for pegs, integrated chain tensioner

BRAKES: brakeless frame

SPECIAL FEATURES:

• technical street/flatland frame, shorter top tube and lower seat tube for younger

riders

• hydroformed top and down tube for superior strength and stiffness

• kinked toptube for increased foot clearance

• frame comes with 14mm slot dropouts

• extruded top tube with integrated threads for cable guides

• tapered seat stays and chain stays with bullet tipped ends

• curved seat stay bridge and chain stay bridge

• wider rear triangle allows clearance for a 2.3" tire

• WTP top tube and down tube gusset

• 6mm seat clamp bolt

• includes LIFETIME GUARANTEE

COLORS: Matt Translucent Steel Grey / Matt Translucent Gold / Black

WEIGHT: 4.27lbs / 1.92kg (20”)

GEOMETRY

A - TOP TUBE LENGTH: 19" or 20"

B - CHAIN STAY LENGTH: 12.4" - 13.2" - optimized for 12.5/12.75" w/25-9

C - HEAD TUBE ANGLE: 75°

D - SEAT TUBE ANGLE: 71°

E - BB HEIGHT: 12"

F - STANDOVER HEIGHT: 6.2"
