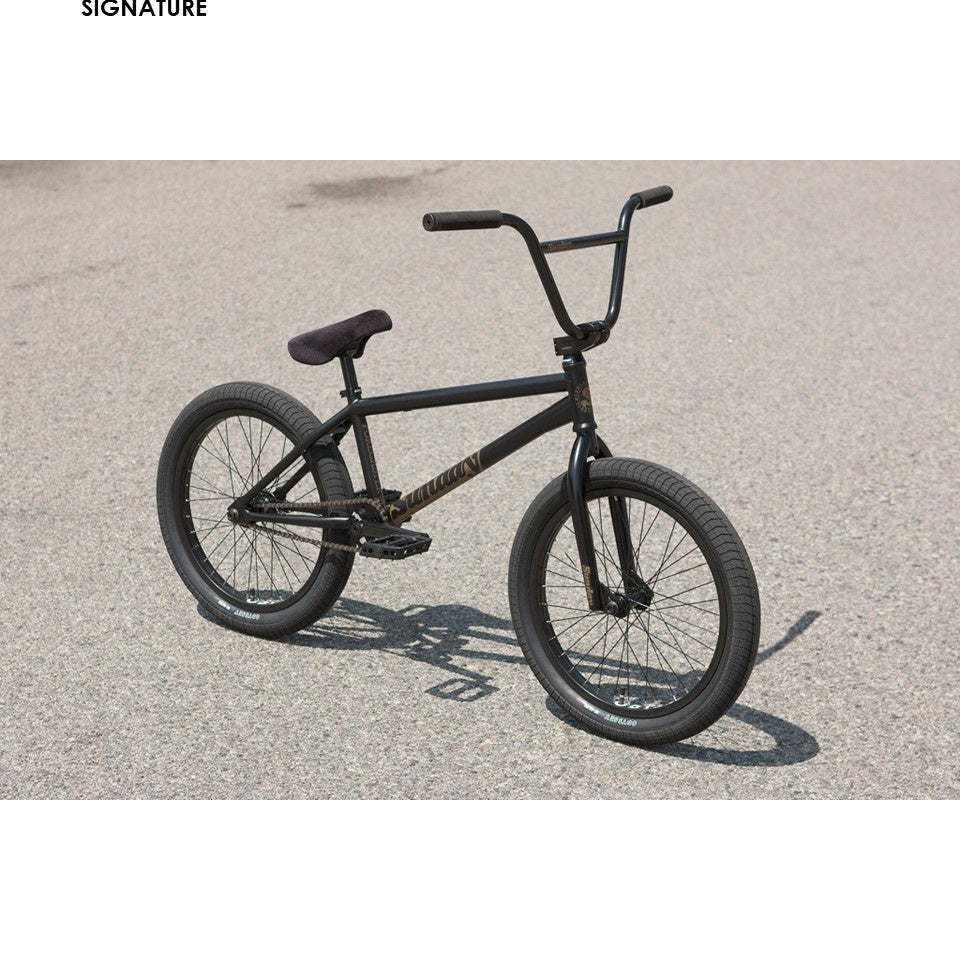

SUNDAY - FORECASTER BROC RAIFORD SIGNATURE
SUNDAY - FORECASTER BROC RAIFORD SIGNATURE
The Forecaster is a model that rides, feels and looks like a pro-level bike and for 2022, it's been upgraded to a full 100% chromoly frame.
Broc Raiford is Sunday's newest pro and with that comes his brand new new signature Forecaster. You’ll find Signature spec’d design cues like the Odyssey Broc Signature Grips, combined with incredible parts like a Odyssey Clutch v2 Freecoaster hub, Odyssey Twisted Pro pedals, and Path Pro tires.
A truly dialed bike for every style of riding. Follow @brocraiford.
KEY FEATURES
- 100% Chromoly Frame
- Odyssey Clutch v2 Freecoaster
- Sealed Front and Rear Hubs
- Sunday Lightning Rims
- Removable Brake Hardware
- Sunday Seeley Signature Grips
- Odyssey Twisted Pro Pedals
- Sunday Freeze Top Load Stem
- Odyssey Springfield Brakes and Lever
- Odyssey Path Pro OEM 2.40" Tires
- Sunday Badge Pivotal Seat
- FSA Conical Headset
SPECIFICATIONS
Frame: Sunday Forecaster, 21" TT, 100% chromoly frame with integrated 1-1/8" head tube, and removable brake hardware
Fork: Sunday Forecaster, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load
Handlebar: Sunday, 2-piece
Stem: Sunday Freeze front load, 48mm
Headset: FSA integrated conical, 1-1/8"
Alloy Cap: Sunday M16, aluminum
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic
Grips: Odyssey Broc Raiford
Seat: Odyssey Broc Raiford Signature, Pivotal
Seat Alternate: Odyssey Big Stitch, Pivotal
Seat Post: Sunday Pivotal
Seat Clamp: Sunday
Sprocket: Sunday Sabertooth v2, 25T, steel
Cranks: 170mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm
Pedals: Odyssey Twisted PC Pro
Rims: Sunday Lightning, 20", 36H
Front Hub: Sunday, 36H, low-flange, sealed , 3/8" female axle
Rear Hub: Odyssey Clutch v2 freecoaster, 36H, 14mm female axle w/ 9T driver, LHD or RHD, non-drive side plastic guard
Spokes: 14g steel, black
Tires: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 26.78lbs (with brakes)
FRAME GEOMETRY
Top Tube Length: 21"
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.7"
Standover: 9"
HANDLEBAR GEOMETRY
Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°
