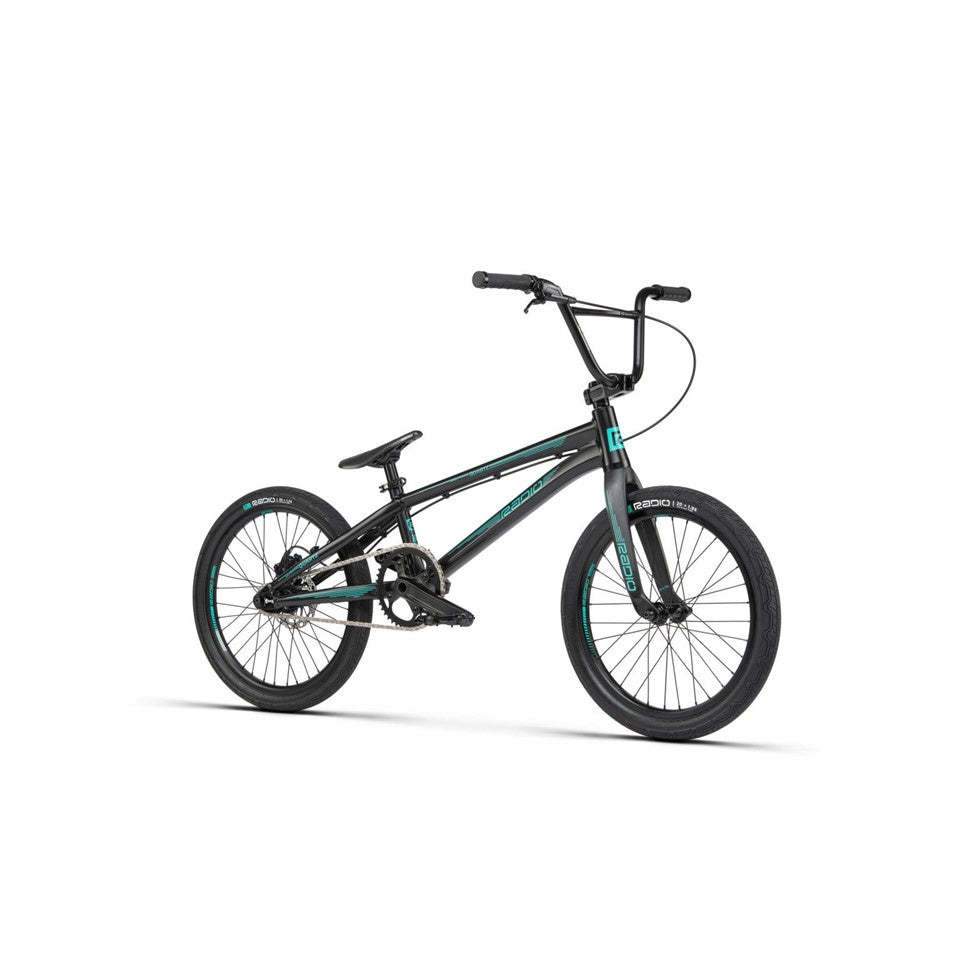

RADIO RACE - QUARTZ PRO XXL

RADIO RACE - QUARTZ PRO XXL

$2,200.00 SGD
$2,200.00 SGD
Sale Sold out

INFO

THE BEST OF THE BEST! THE QUARTZ IS OUR X6 WORLD CHAMPIONSHIP WINNING SUPER-LIGHTWEIGHT ALLOY FRAME WITH NO DETAILS SPARED. WE TOOK THIS FRAME AND DRAPED IT IN ONLY THE VERY BEST COMPONENTS CREATING A FULL PRO BUILD THAT ANYONE WOULD BE JEALOUS TO OWN. YOU’LL FIND OUR SOLAR CARBON FORK, OXYGEN TIRES, ARGON RIMS, TURBINE HUBS AND EVEN OUR NEW HYDRAULIC DISC BRAKE KIT ON THIS MASTERPIECE OF A BIKE. READY FOR THE TRACK AND THE PODIUM, WE HOPE YOU CAN KEEP UP WITH THE SPEED THAT THIS MACHINE CAN PUT OUT!

FRAME lightweight hydroformed 6061 T6 alloy, tapered headtube, forged dropouts, with int. chain tensioners
FORK Radio, Solar, carbon fork, 1-1/8″ – 1.5″ tapered steerer tube, 32mm offset
HANDLEBAR Radio, Neon Pro, hydroformed multiple butted & heat-treated cr-mo
GRIPS Radio, Xenon, diamond knurling, clamp on grip, 139mm length
STEM Radio, Neon Pro, top loader, ext. 54mm, cnc machined, alloy
HEADSET Radio, Pro, Int. Headset, sealed, threadless, 1-1/8″ – 1.5″
BRAKE LEVER Radio, Raceline, hydraulic disc brake 2 finger lever
BRAKE Radio, Raceline, hydraulic disc brake, 120mm rotor
CRANK Radio, Xenon Pro, 2pc crank, cold forged/cnc, alloy 180mm length, 24mm spindle
BB Radio, Raceline, BSA24, external bearing cups, cnc machined, sealed
PEDALS Radio, Xenon Slim, alloy
CHAIN KMC, Z1eHX, 1/2″ x 3/32″SPROCKET Radio, Xenon Pro, 44t, alloyDRIVER Radio, 16t cog, 1/2″- 3/32″, sealed cassette driverFRONT HUB Radio, Turbine, alloy cnc, fully sealed, 36h, 3/8″ female cr-mo axleREAR HUB Radio, Turbine, alloy cnc, fully sealed, 36h, disc brake cassette, 3/8″ female cr-mo axleRIMS Radio, Argon Pro, 36h, alloy, sleeved, tubeless ready f&rSEAT Radio, Xenon, pivotal, no paddingSEAT POST Radio, 27.2mm, pivotal, alloy seatpostSEAT CLAMP Radio, Helium Pro, quick-release , alloyTIRES Radio, Oxygen, front 20″x1.95″ / rear 20″x1.75″, foldable , tubeless readyWEIGHT 9.085kg/ 20.03lbs
FRAME GEOMETRY
TOP TUBE LENGTH 21.75″
CHAIN STAY LENGTH 15.25″
HEAD TUBE ANGLE 74°
SEAT TUBE ANGLE 71°
BOTTOM BRACKET HEIGHT 11.6″
HANDLEBAR GEOMETRYRISE 8.5″WIDTH 29″BACKSWEEP 6.5°UPSWEEP 2.5°
