OHLINS

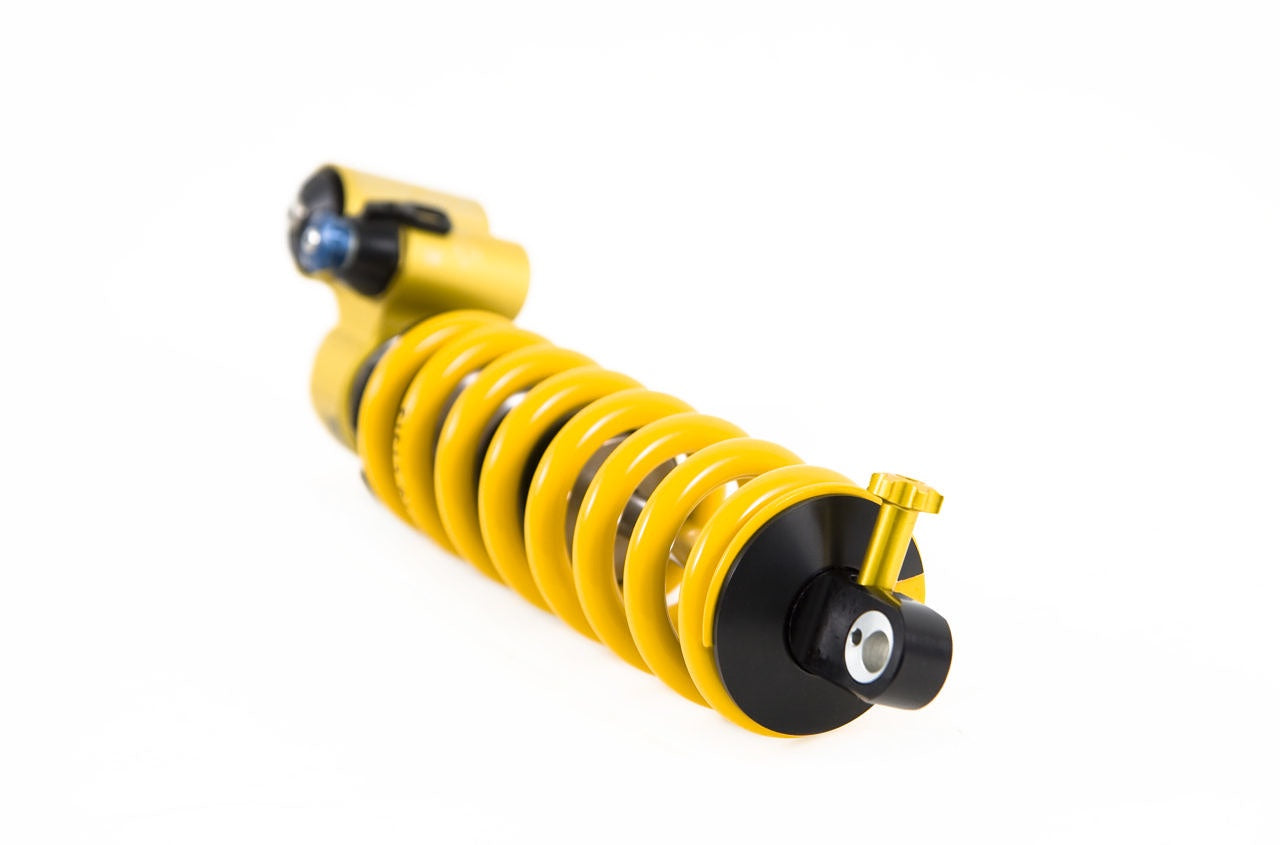

OHLINS - TTX22M REAR SHOCK COIL

OHLINS - TTX22M REAR SHOCK COIL

Regular price $1,000.00 SGD
Regular price Sale price $1,000.00 SGD
Sale Sold out
Size

Öhlins TTX22M (Metric) Rear Shock

Supreme levels of big hit performance combined with excellent traction and control make the TTX22M the ultimate shock for gravity riders – and it now comes with all the advantages of metric sizing

Description

The Öhlins TTX22M shock delivers World Cup Downhill performance in a package to suit any bike and enables you to attack the toughest sections faster and harder than you ever thought possible. From the moment it got into the hands of riders, the TTX22M created a massive buzz within the bike industry. Praised for its outstanding performance and a huge range of meaningful adjustability, the shock sets a new standard in high-end gravity componentry.

Designed to soak up even the most challenging World Cup Downhill tracks, the TTX22M shock also provides excellent pedal efficiency over flat and uphill sections. Its twin tube design allows the gas pressure to consistently backup the low-pressure side of the piston to keep it at a controlled level. This ensures a highly consistent damping performance and an instant suspension response for outstanding bike control and unbeatable tire traction over any kind of terrain.

Super simple to set up, the high-speed compression and rebound damping are externally adjustable for easy tuning on-the-fly. Initial set-up of the TTX22M shock is really easy – check out the video here.

All our shocks feature a stability mode on the high-speed adjuster, which increases compression to give reduced suspension movements for those times when gravity is working against you.

Just like every product fitted with TTX damping technology, the TTX22M (Metric) has a race-proven settings bank giving access to a huge range of options for tuning the damper to suit any specific rider, bike or riding style.

Öhlins Performance Suspension Guide
Do you want to know which suspension models best suits your bike? Click here to use our Performance Suspension Guide, it will also recommend a personal set up based on your weight and desired sag.

Technologies
No one knows suspension like Öhlins, our proprietary technologies – developed from multi-discipline know-how help you ride smoother, faster and push the boundaries of your MTB. To learn more about our suspension technologies, click here.

Features

TTX-technology

Specifically designed for the enduro/gravity circuit

Nitrogen pressurized bladder reservoir system

Available in in metric lengths/strokes

210x55/50mm

230x65/60mm

250x75/70mm

Possible to decrease stroke with 2.5 mm using spacer in the box or exchanging stop cap at a service center

Weights from 423 grams to 454 grams

Spring weight has been reduced

Easy to set up with enough adjustment range to suit different riding conditions

External, three level high-speed compression adjustment

External, 16 click low-speed compression adjustment rebound damping adjustment

External, seven click rebound adjustment
