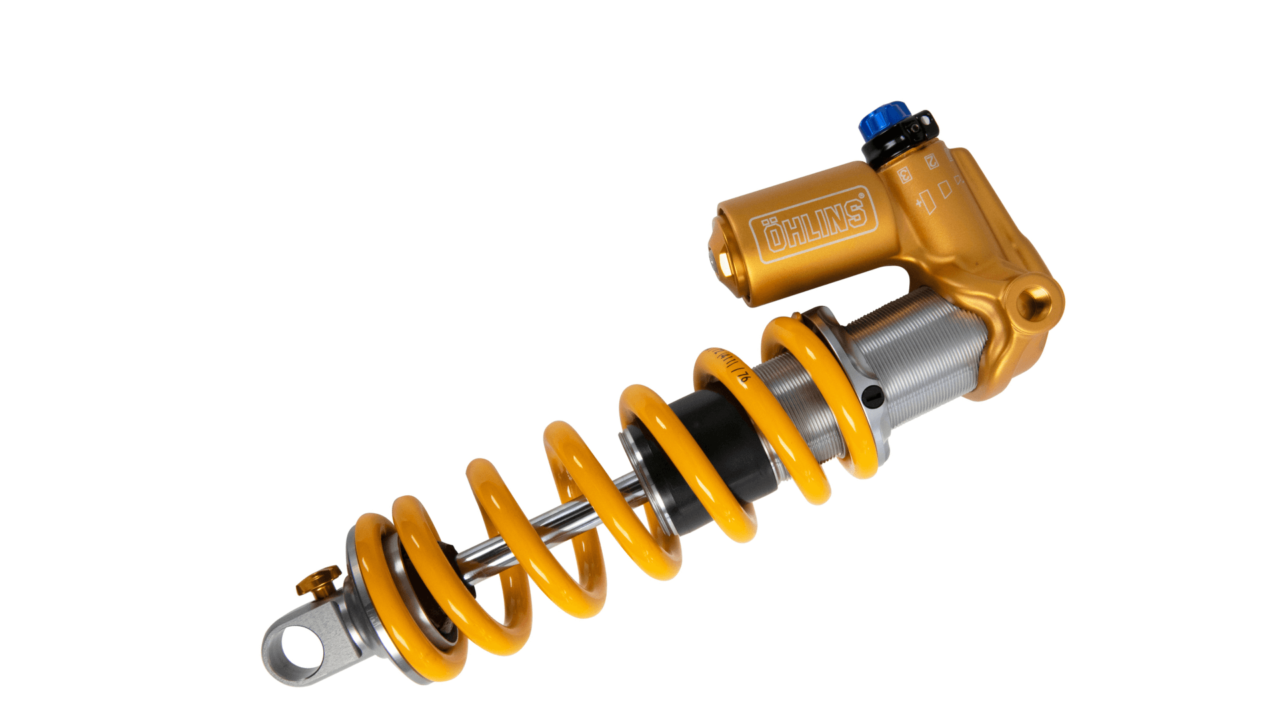

OHLINS - TTX2M.2 TRUNNION PIGGYBACK REAR SHOCK
OHLINS - TTX2M.2 TRUNNION PIGGYBACK REAR SHOCK
Description
Introducing the next generation of big hit suspension technology. The updated TTX22m.2 rear shock builds on the supreme levels of performance, traction and control that made the original TTX22 the go-to shock choice for professional gravity riders.
Improved bottom out performance
The new TTX22m.2 benefits from improved bottom out performance, courtesy of a newly designed bump rubber, in addition to the cup it sits in. This significantly improves mid- to end-stroke control as a result of earlier engagement and more consistent, predictable support.
The new bump rubber, in combination with the cup it sits in, acts as a second spring, loading and releasing energy to ensure the rider returns back into position after a heavy compression in a quick, controlled manner. Overall, the spring curve of the shock will improve performance for less progressive bikes that require more end-stroke support. The new design also boasts the added effect of lowering the risk for a hard bottom out that could impact handling.
Easier stroke adjustment
Changing both spring and stroke is an easy operation on the TTX22m.2. This is achieved by adding or removing 2.5mm washers under the bump rubber cup. No special tools are required, nor is shock disassembly needed to perform the operation. The spring, meanwhile, can be changed by simply loosening the preload and removing the spring seat lock ring. The spring can then slide over the end eye, making it easy to optimize shock performance and sag.
Wider adjustment range
The updated shock’s blue trail high-speed compression valve now provides a wider adjustment range. Importantly, this gives the rider more distinct alternatives to choose between when customizing setup. This new wider range also adds support in the pedal mode, making the bike a more efficient climber. The golden DH compression valve retains the same adjustment range as the original, which is already perfectly optimized for gravity riding.
Improved fitting
We have developed two new cylinder heads for the TTX22m.2, making the shock more adaptable. The cylinder heads for both regular end eyes and trunnion mounts now have a side-by-side reservoir design. This means the shocks are more compact and can be fitted on a wider range of bikes. For Trunnion, a traditional in-line piggyback version will also be available.
Öhlins Performance Suspension Guide
Do you want to know which suspension model best suits your bike? Click here to use our Performance Suspension Guide which will also recommend a personal set up based on your weight and desired sag.
Technologies
No one knows suspension like Öhlins. Our proprietary technologies are developed from multi-discipline know-how help you ride smoother, faster and push the boundaries of your MTB. To learn more about our suspension technologies, click here.
Servicing & Support
Regular and effective maintenance is the key to maintaining the optimal function and performance of your Öhlins suspension forks and shocks. Öhlins products can be serviced at any authorized service center and basic service can be performed by riders with intermediate mechanical skills, using commonly owned tools.
Öhlins riders can safely maintain and service their own forks and rear shocks using our simple step-by-step video guides and PDF manuals, supported by easily available spare part kits that come complete with everything needed to keep their suspension in peak condition. To learn more about our range of service kits, tools and to access our tech videos and service manuals, click here.
Features
TTX technology
Specifically designed for trail and downhill use
250/225 length with golden DH compression valve; blue trail valve for all other lengths
Available in metric lengths/strokes
Trunnion piggyback cylinder head
185x55/52.5/50/47.5mm
205x65/62.5/60/57.5mm
225x75/72.5/70/67.5mm
Possible to adjust stroke simply with the three 2.5 mm spacers included in the box
Suitable for our lightweight springs with 4 Nm/23 lbs increments
External, 3 level high-speed compression adjustment
External, 16 click low-speed compression adjustment rebound damping adjustment
External, 7 click rebound adjustment
Weight: 486g (for Trunnion shock 205x65)
