OHLINS - MOUNTING HARDWARE AM 8/30

Mounting Kits 15mm Eyelet Mounting Kit 8x30mm -STX22-TTX Air-TTX22m

The STX22/TTX Air and TTX22m Universal MTB shock absorber is mounted with bushings at top and bottom. The shock absorber comes with 2 bushings.

The additional mounting kits consist of bushings, plastic- or aluminium spacers and o-rings to mount the damper to mountain bikes with different mount width and bolts. To determine the required mounting kit for your bike please measure the width of the damper mounting points on your bike.

For 15mm Eyelet

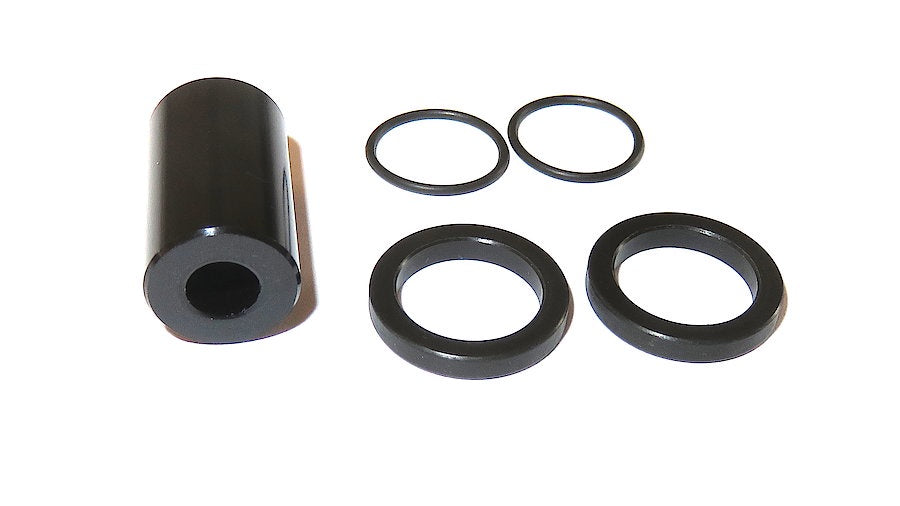

Included:

• 1x bushing, metal, 30 mm x 12,74 mm, 8 mm inner diameter

• 2x spacer, plastic, 6.8 mm x 17,45 mm, 12,75 mm diameter

• 2x sealings
