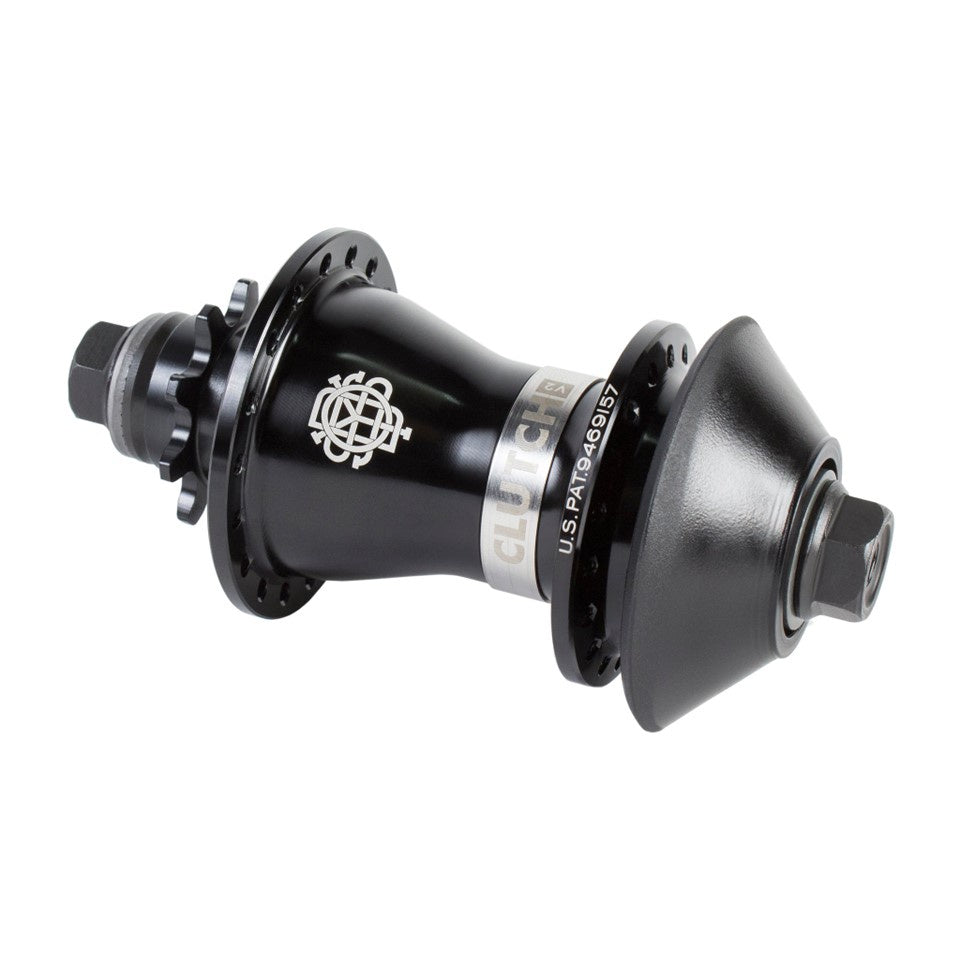

ODYSSEY - CLUTCH V2 FREECOASTER REAR HUB

The Clutch Hub is a traditional clutch-based coaster hub design that eliminates all of the problematic elements on ordinary hubs and only keeps the parts that work. A new, super-strong FULL 14mm axle, bearing configuration, and drag mechanism design stops the need for constant repairs. Equipped with external slack adjustment, which can be done with a 2.5mm hex key through a hub shell access hole (can be adjusted without removing the wheel), and an improved plastic hub guard spec.

Same Clutch coaster hub you’ve come to love, but with a few upgrades.

KEY FEATURES

• Maximum strength axle design
• Super-durable bearing arrangement throughout
• 2.5mm hex key slack adjustment through hub shell access hole. No wheel removal required.
• Super-durable drag mechanism design
• Crankflip ready
• Protected by US Patent 9,469,157
• Protected by Taiwan Patents M487850, M487851, M502583

Exploded View

IMPROVEMENTS OVER THE CLUTCH V1

• 14mm chromoly axle bolts on both the drive and non-drive side for greater reliability
• Improved clutch engagement
• Improved manufacturing precision throughout
• More slack than the V1 hub
• All-new durable proprietary plastic spec for the removable hub guard

SPECS

• 36-hole, 2014-T6 aluminum shell
• 9-T Driver
• Left or right hand drive
• 22 oz / 623g

GUARD OPTIONS

• Plastic hub guard included (but optional to use)
• Alloy hub guard also available
