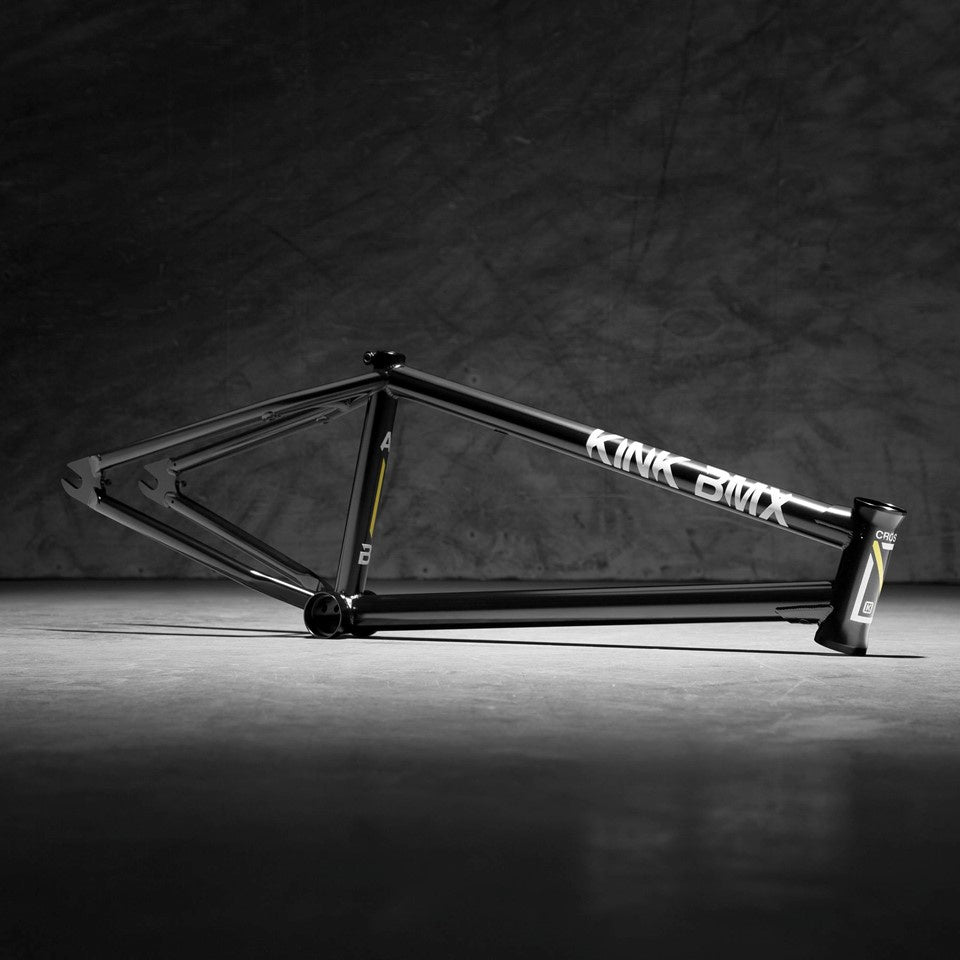

KINK - CROSSCUT FRAME

The Kink Crosscut is a modern-day beast of a frame. The double-butted toptube and downtube with both upper and lower gussets will stand up to the hardest riding, and the short 12.5” chainstay length and quick 75.5° headtube angle make this frame nice and nimble. The generous 9.25” standover height gives the frame a clean and traditional look, but with the aforementioned modern-day geometry. The all new investment cast chainstay yoke enables you to ride any modern tire size up to 2.55” and run your choice of 25t or 28t sprocket. This frame also comes standard with an integrated seat post clamp, integrated chain tensioners, and removeable brake mounts.

GEOMETRY

Toptube Sizes - 20", 20.5”, 20.75”, 21”, 21.25"

Chainstay Length - 12.5" Slammed

Bottom Bracket Height - 11.6"

Standover Height - 9.25"

Headtube Angle - 75.5°

Seattube Angle - 71°

Headtube Height - 5"

TECH SPEC

Material - 100% 4130 Chromoly Tubing

Headtube - Integrated Campy Spec

Dropouts - Laser Cut with Integrated Chain Tensioners

Bottom Bracket - Internally and Externally Machined Mid BB

Braking - Removable Through-Bolt Brake Mount System

Particulars

Toptube and Downtube Gussets

Integrated Seat Clamp

Investment Cast Chainstay Yoke

Weight - 4lb 15oz (20.5")
