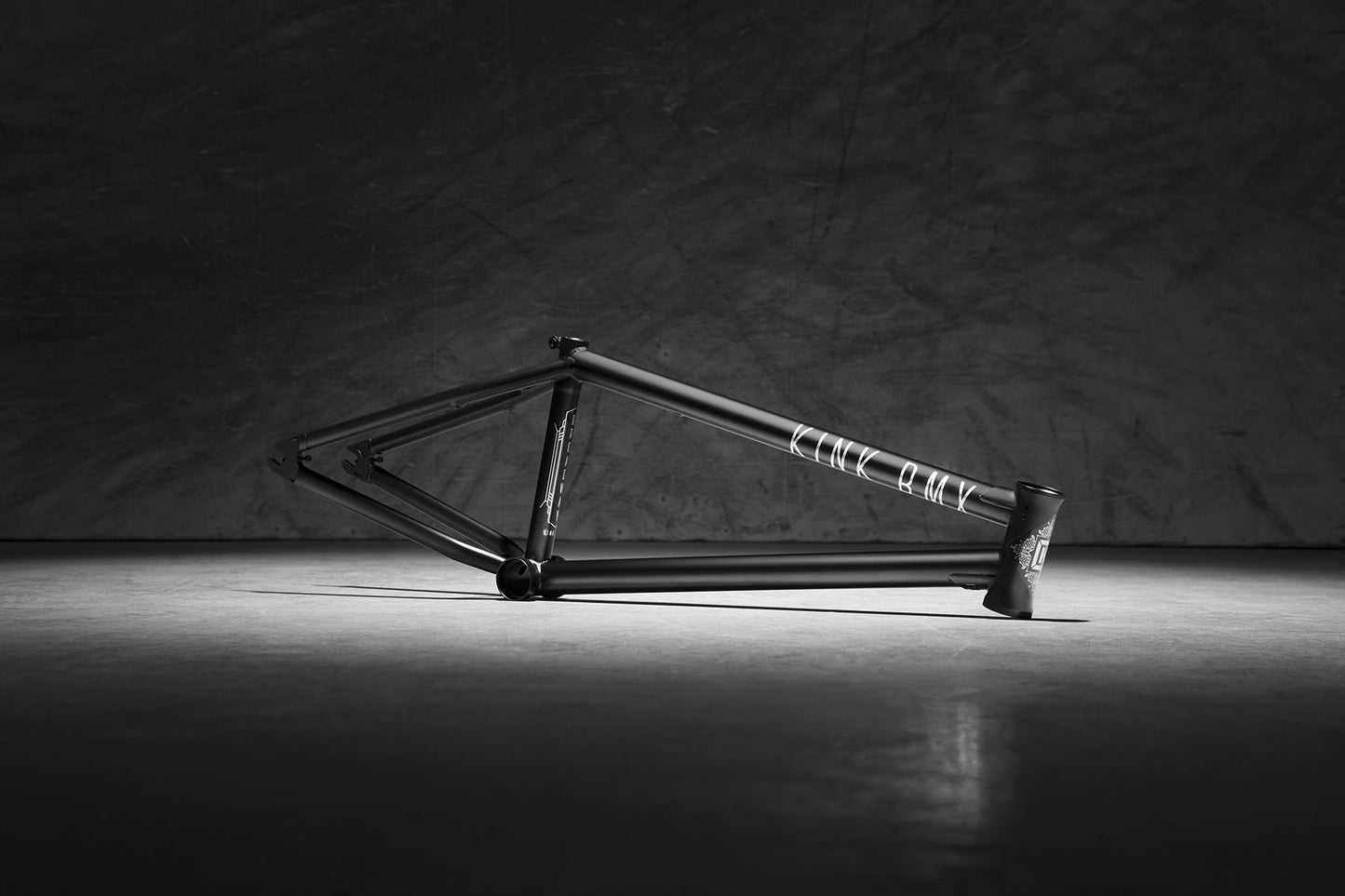

KINK - BROADWAY FRAME

Modern street geometry, premium grade materials, years of development and testing, and an affordable price tag. The Kink Broadway is a no compromises frame, that we’ve worked tirelessly to bring to riders at a great price. Beyond the modern geometry, the frame is stacked with great features like the integrated seat post clamp, integrated chain tensioners, removable brake mounts, and gussets top and bottom for added strength. The larger seatstay bridge and wishbone chainstay design create a stiff rear-triangle with plenty of tire clearance for up to 2.5” tires. The steeper 75.5 degree headtube angle and shorter 12.75” chainstay make the Broadway super responsive and maneuverable.

SPEC

Colors:Matte Black

Material:100% Seamless 4130 Chromoly Tubing

Headtube:Integrated Campy Spec

Dropouts:Investment Cast with Integrated Chain Tensioners

Bottom Bracket:Internally and Externally Machined Mid Size BB

Braking:Removable Through-Bolt Brake Mount System

Particulars:Toptube and Downtube Gussets

Widened Stays for Big Tire Clearance
Integrated Seat Post Clamp
CNC Seatstay Bridge and Wishbone Chainstay Design

Weight:4lb 15oz (20.5″)

GEOMETRY

Toptube Sizes:20.5”, 20.75”, 21”

Chainstay Length:12.75” Slammed

Bottom Bracket Height:11.6"

Standover Height:9"

Headtube Angle:75.5°

Seattube Angle:71°
