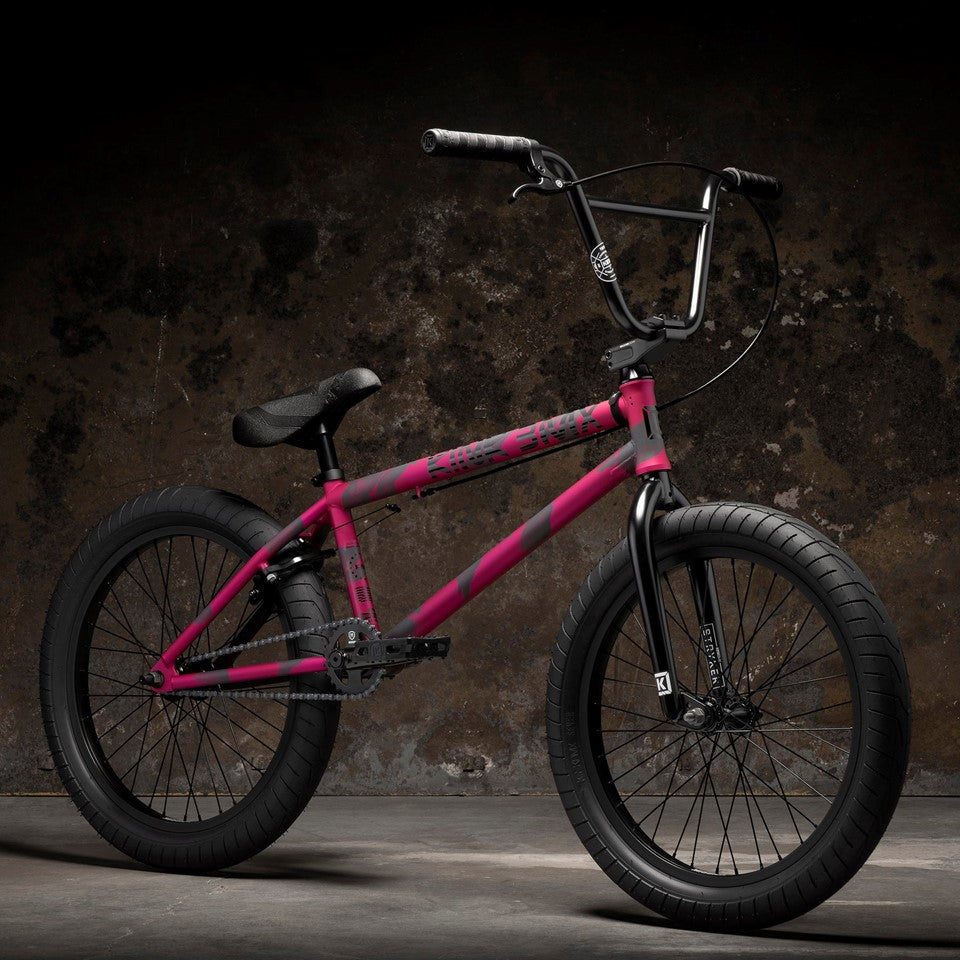

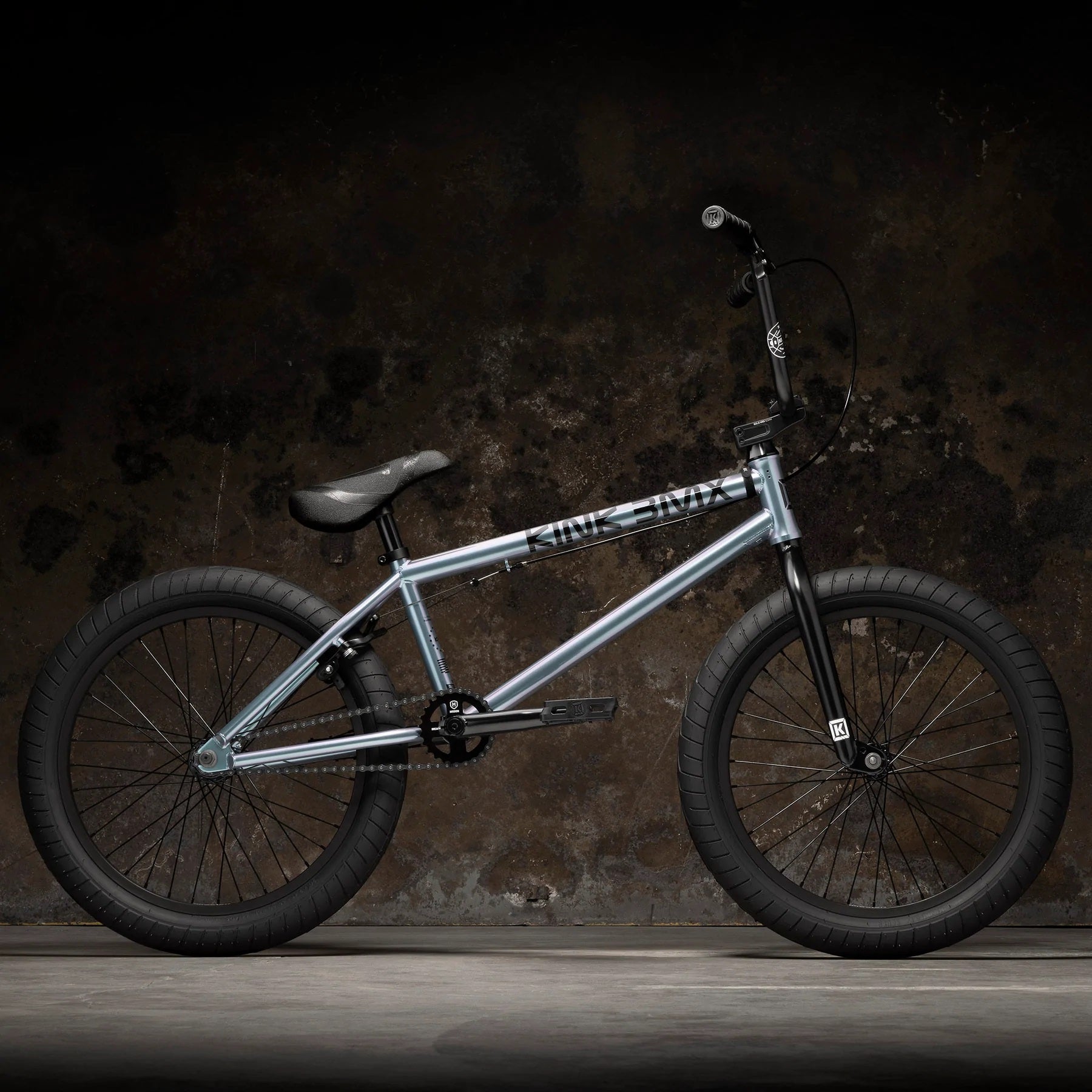

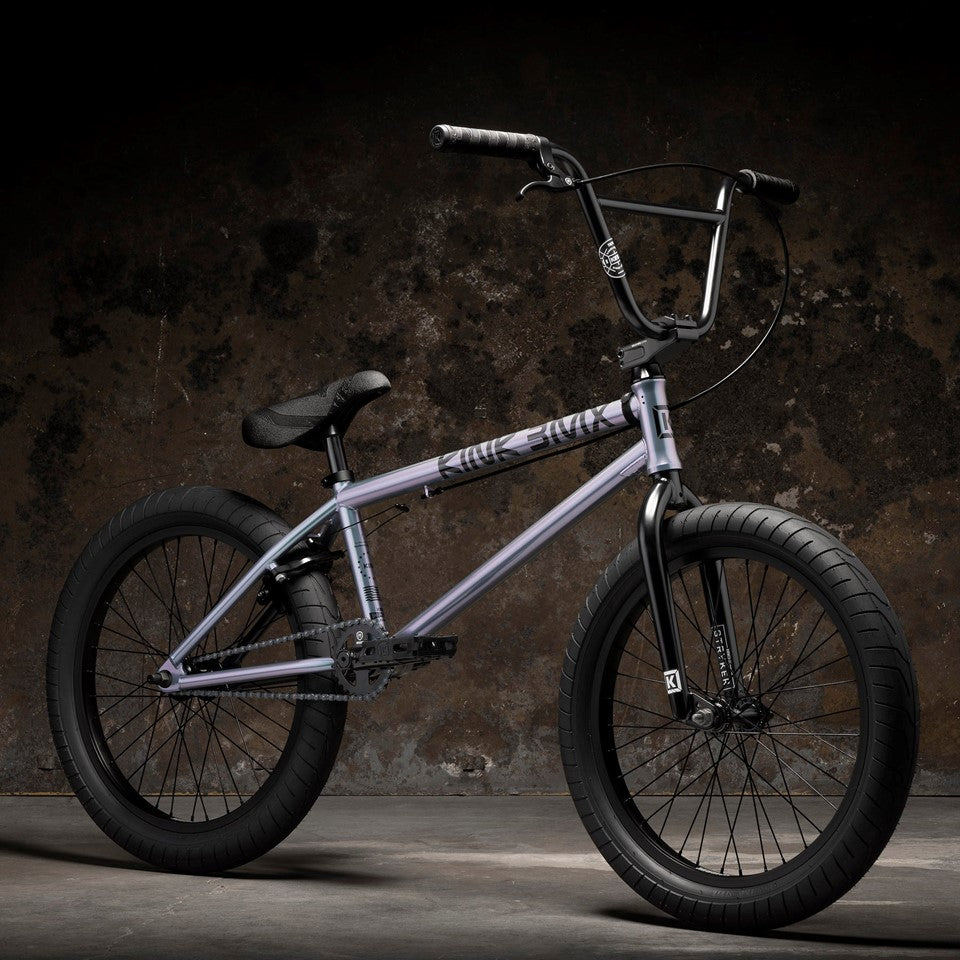

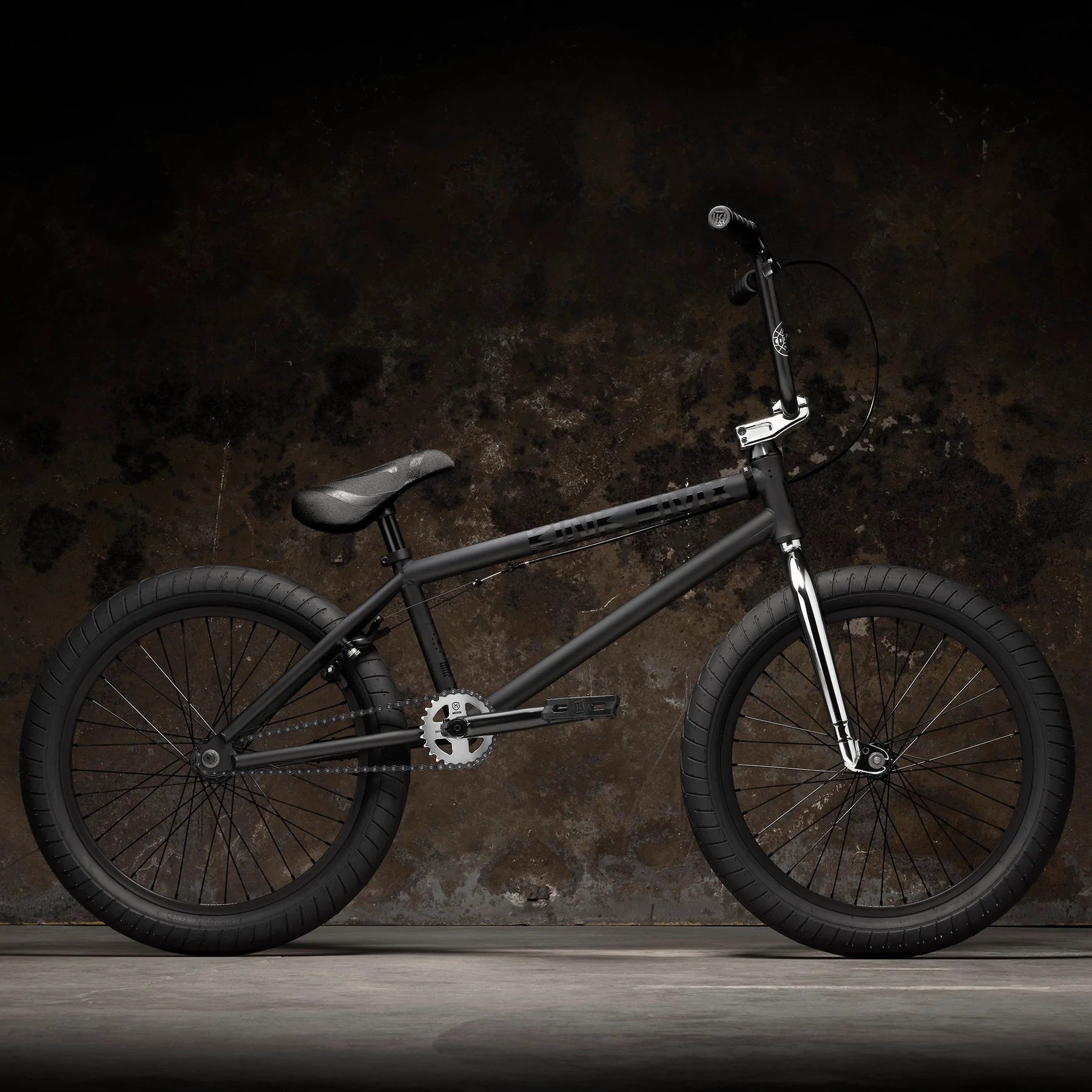

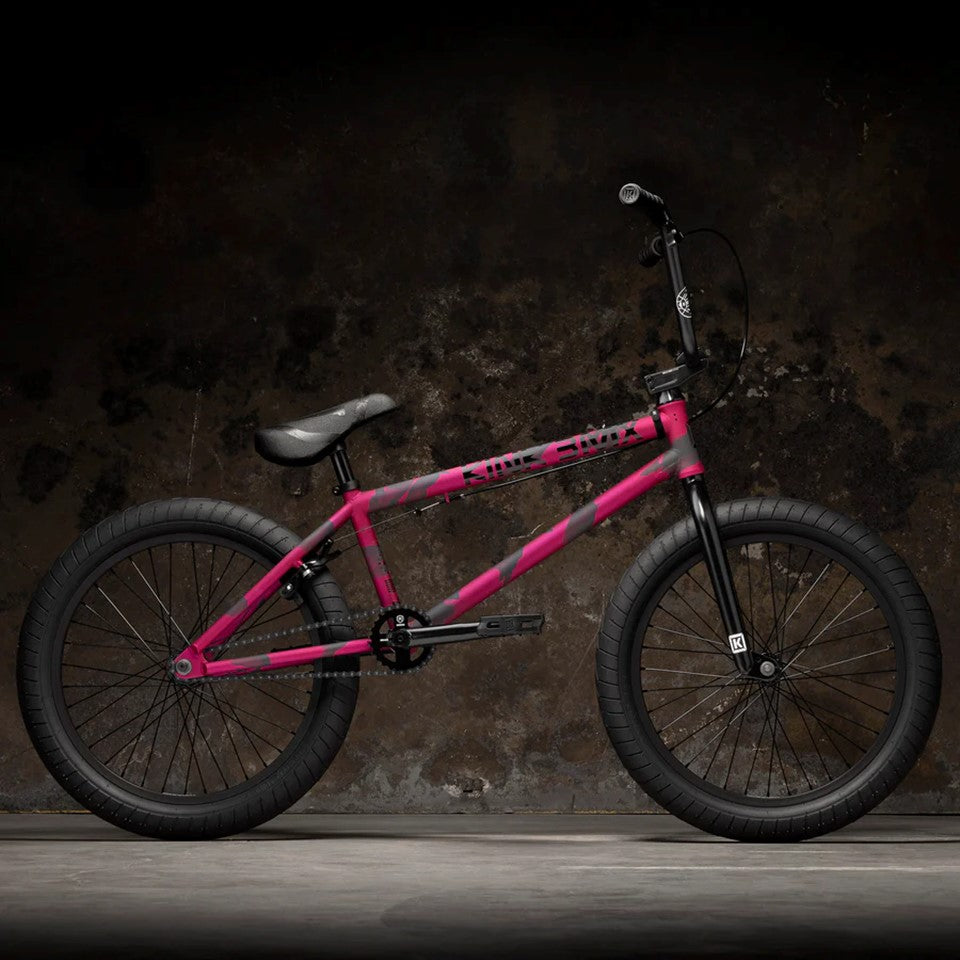

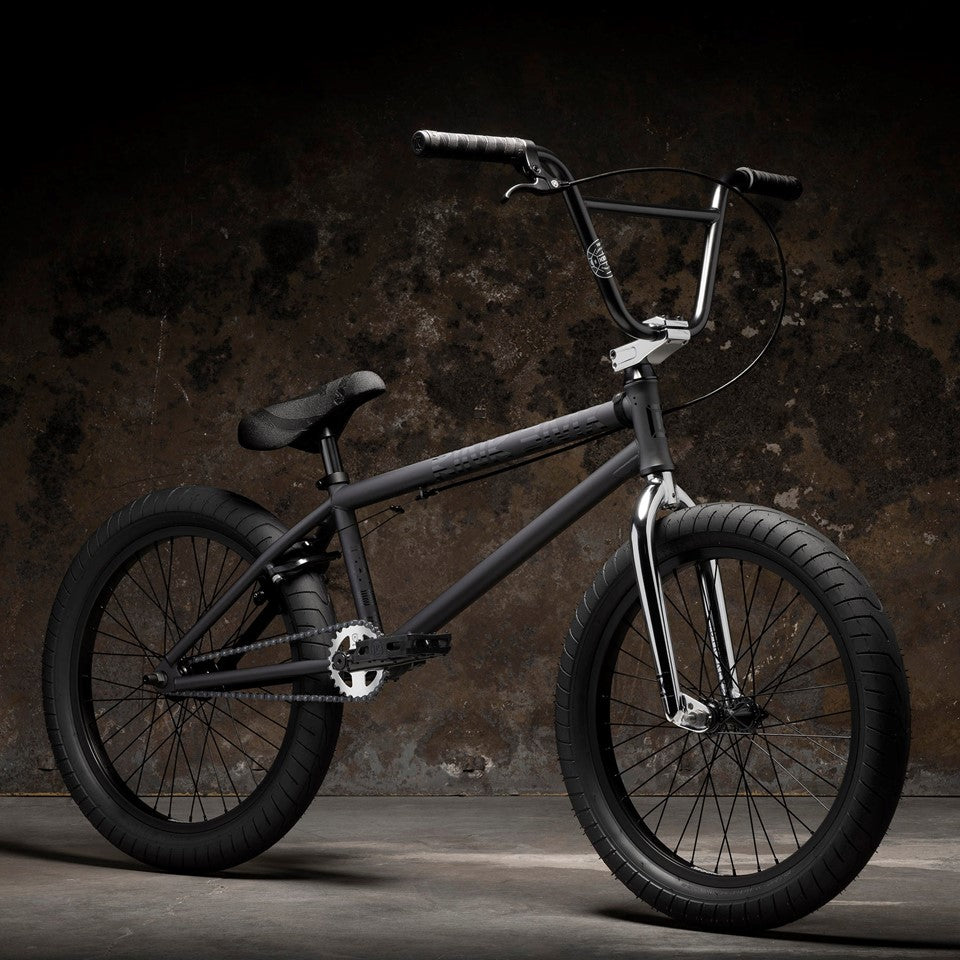

The 2023 Launch continues the legacy of a truly remarkable bike. This bike is still one of the best value priced models in the market, year after year. Available in Matte Midnight Black, Matte Cosmos Magenta, and Gloss Galaxy Silver colorways, the Launch pairs its great color selection with even better components.
The Launch is equipped with both a sealed integrated headset and sealed Mid bottom bracket, which drastically improves performance and virtually eliminates maintenance of these components. Combined with a parts package that includes Kink Stryker forks, Kink T875 8.75” bars, and Mission Triumph 3pc tubular chromoly cranks, this bike is a new rider’s dream.
GEOMETRY
Toptube Length - 20.25"
Chainstay Length - 13.25"
Headtube Angle - 75°
Seattube Angle - 71°
Standover Height - 8.75″
Bottom Bracket Height - 11.6"
Fork Offset - 32mm
TECH SPECS
FRAME Kink Launch 100% Hi-Ten Steel
PEDALS Kink Hemlock
FORK Kink Stryker 4130 Chromoly Steerer Tapered Fork Legs
CHAIN Mission 410
BARS Kink T875 8.75" 100% Hi-Ten Steel
SPROCKET Mission Breach 25T
GRIPS Kink Ace, Thrust Barends
SEAT Mission Warsaw Combo
STEM Kink Bold HRD 50mm
SEAT POST Mission Combo Steel Post
HEADSET Mission Sealed Integrated (41.8 x 45)
SEAT CLAMP Mission Slim Clamp
BRAKE LEVER Mission Token
FRONT HUB Mission Covert Unsealed 3/8" Axle
BRAKE CABLE Mission L3 Linear
REAR HUB Mission Function Semi-Sealed Cassette 14mm
BRAKES Mission Cease V2
DRIVER 9T
CRANKS Mission Triumph 3pc Tubular Chromoly 170mm - 8 Spline
RIMS Mission X7
BOTTOM BRACKET Sealed Mid 19mm
TIRES Kink Sever 2.4"
PEGS N/A
WEIGHT 26lb 9oz
