KINK - GAP 2023

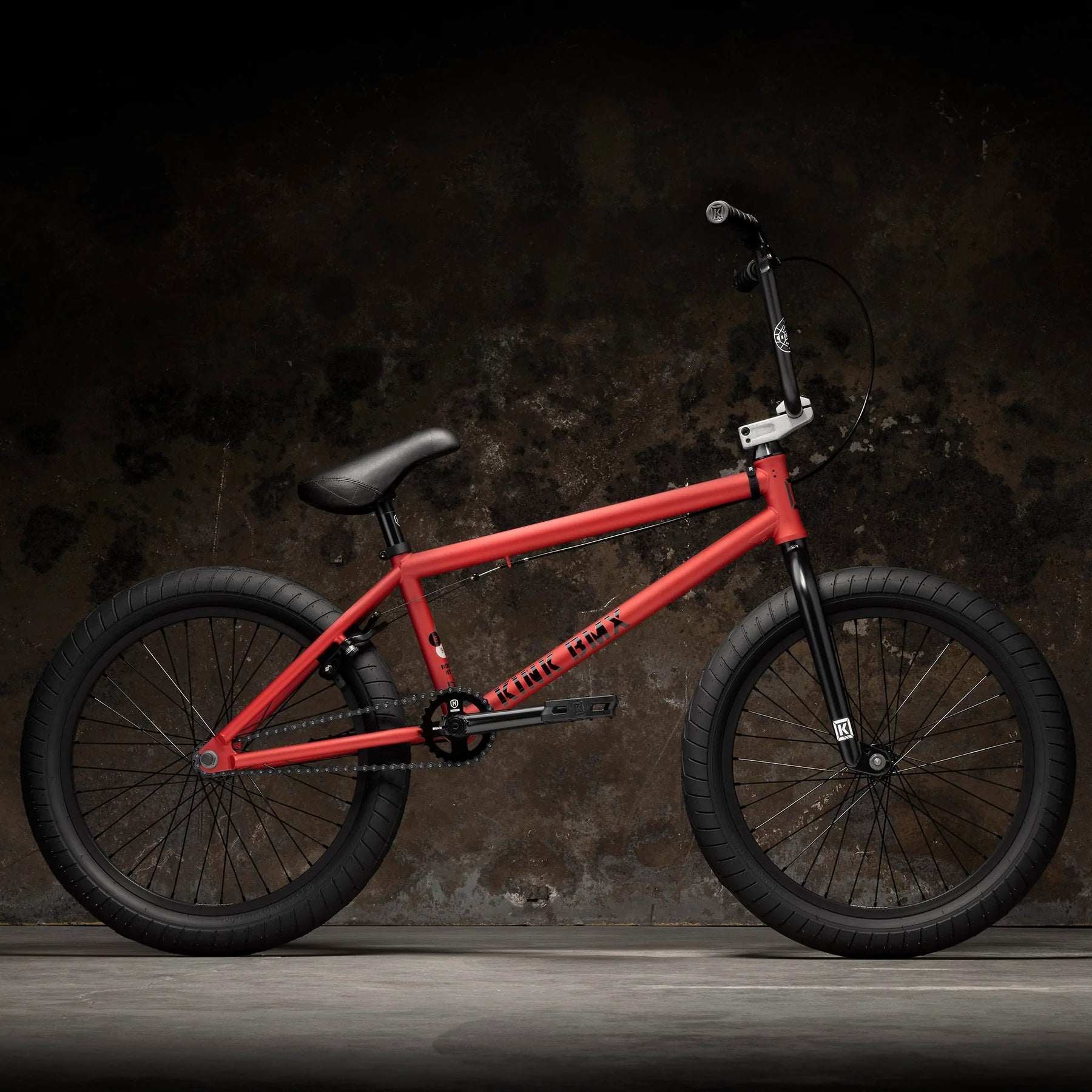

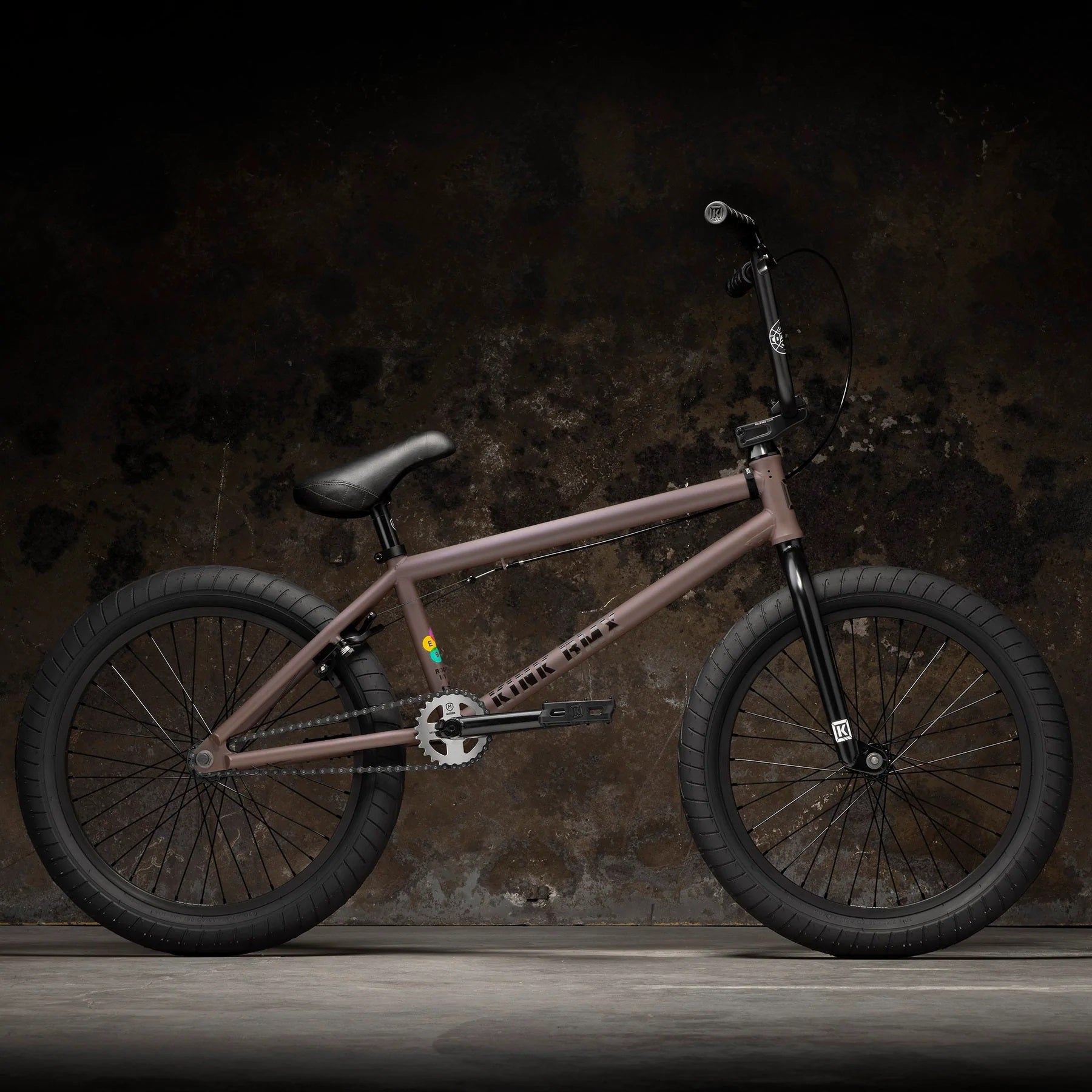

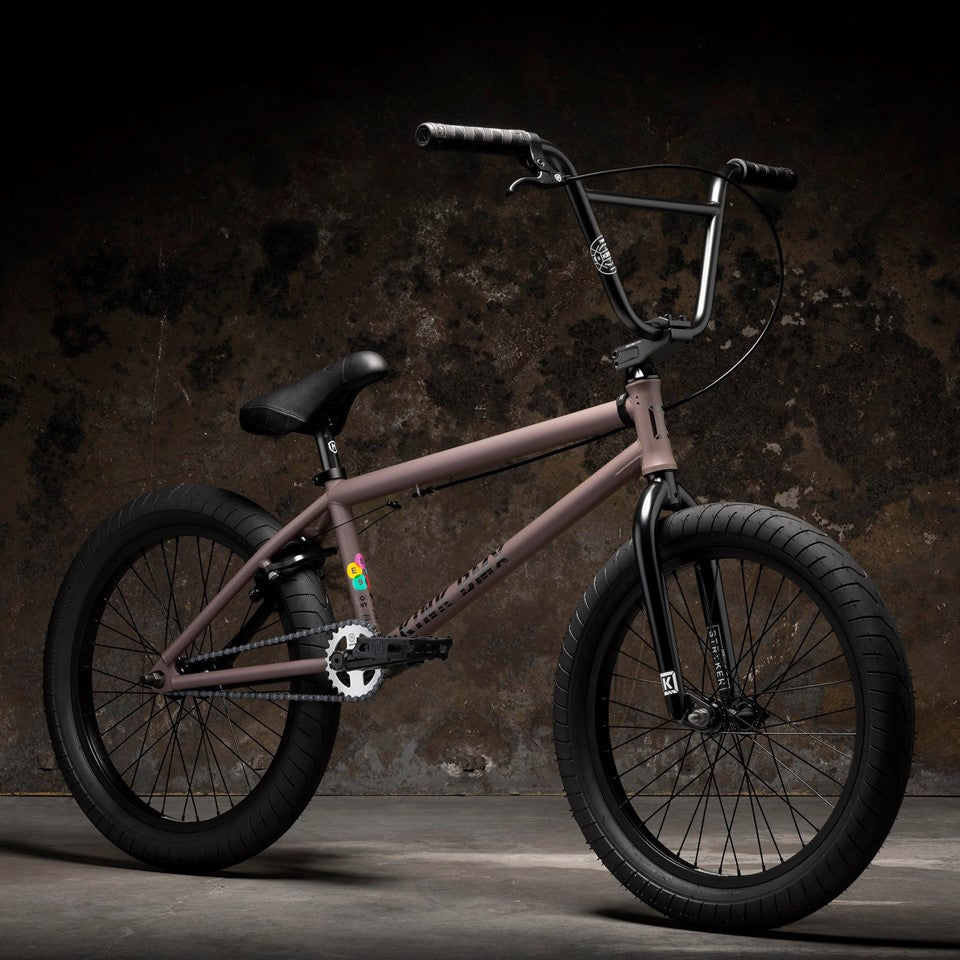

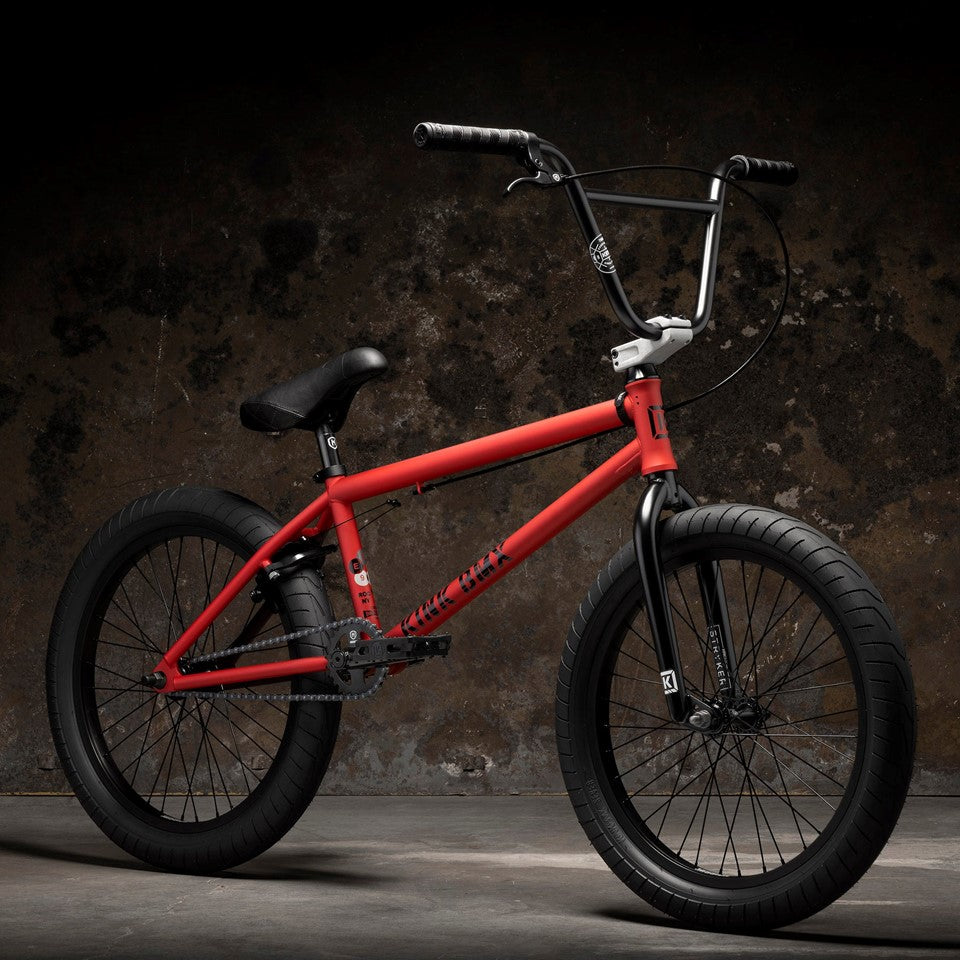

The Gap is a versatile machine ready to handle anything you throw at it. Featuring modern geometry, the frame, fork, and bars add 4130 chromoly into the mix, and is available in both Matte Baked Red and Matte Iridescent Mocha colorways. Components found on the Gap take things up a notch and are not to be missed.

Not only will it look the part, the 9” Kink T900 bars, Kink Stryker forks, Kink Bold HRD stem, sealed Mission Engage cassette hub, and Kink Ridge 3-piece tubular chromoly cranks help it to feel and perform the part. The addition of a Stealth seat and seat post are not to be overlooked either and add both adjustability and modern compatibility. Modern frame geometry brings a lower bottom bracket and raised standover height to the Gap, for a stable ride.

GEOMETRY

Toptube Length - 20.5"

Chainstay Length - 13.25"

Headtube Angle - 75°

Seattube Angle - 71°

Standover Height - 9″

Bottom Bracket Height - 11.6"

Fork Offset - 32mm

TECH SPECS

FRAME Kink Gap 100% 4130 Chromoly HT, TT and DT

PEDALS Kink Hemlock

FORK Kink Stryker 4130 Chromoly Steerer, Tapered Fork Legs

CHAIN Mission 410

BARS Kink T900 9" 100% 4130 Chromoly

SPROCKET Mission Breach 25T

GRIPS Kink Ace Flangeless

SEAT Kink Plymouth Stealth

STEM Kink Bold HRD 50mm

SEAT POST Mission Stealth

HEADSET Mission Sealed Integrated (41.8 x 45)

SEAT CLAMP Mission Slim Clamp

BRAKE LEVER Mission Token

FRONT HUB Mission Covert Unsealed 3/8″ Axle

BRAKE CABLE Mission L3 Linear

REAR HUB Mission Engage Sealed Cassette 14mm

BRAKES Mission Cease V2

DRIVER 9T

CRANKS Kink Ridge 3pc Tubular Chromoly 170mm – 8 Spline

RIMS Mission X7

BOTTOM BRACKET Sealed Mid 19mm

TIRES Kink Sever 2.4"

PEGS  N/A

WEIGHT  27lb 1oz
