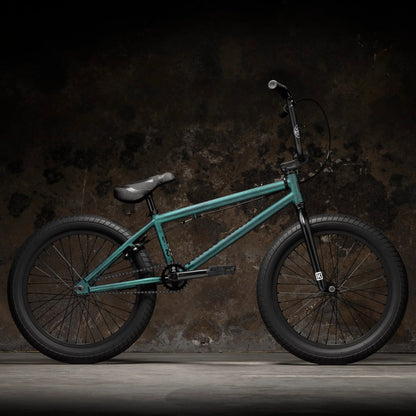

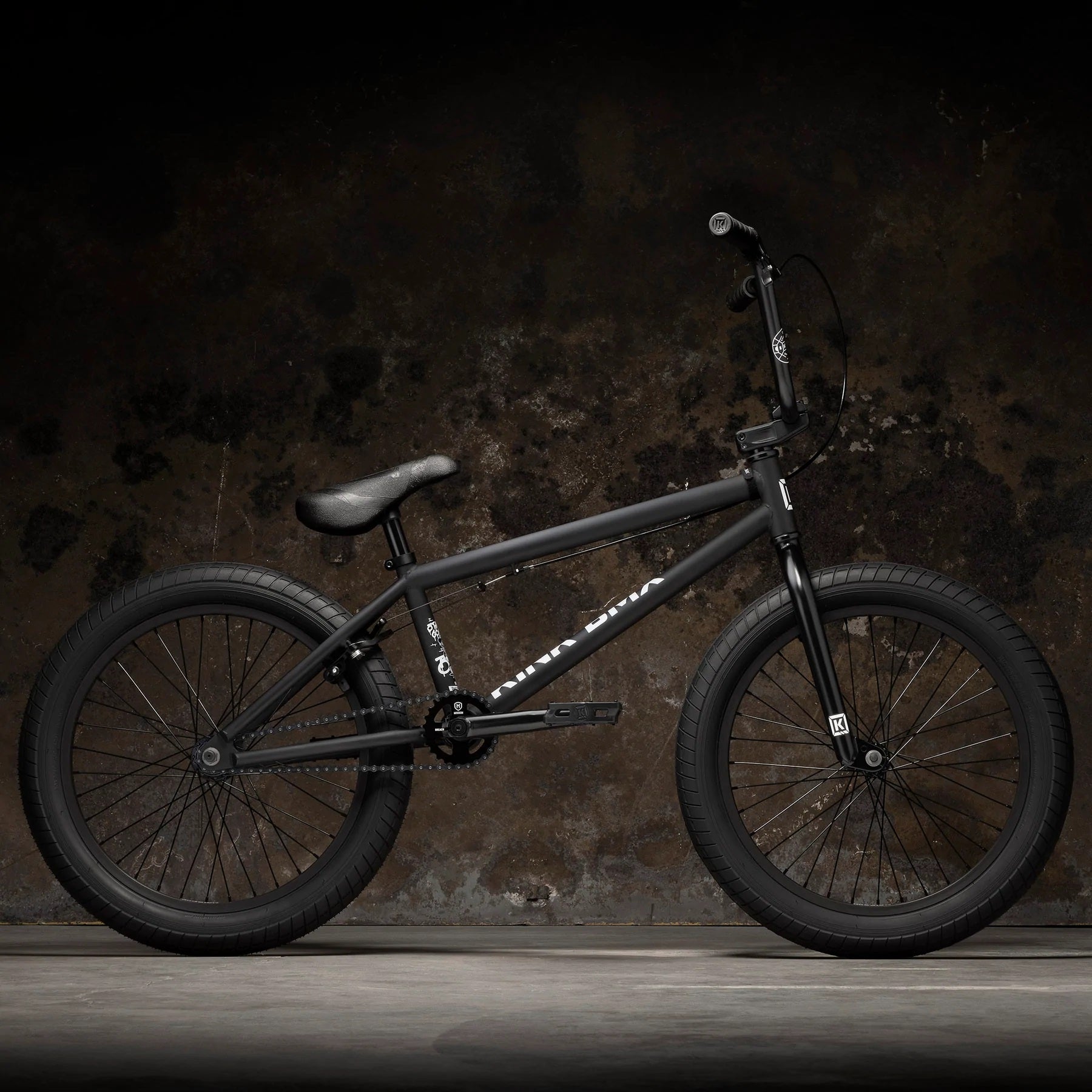

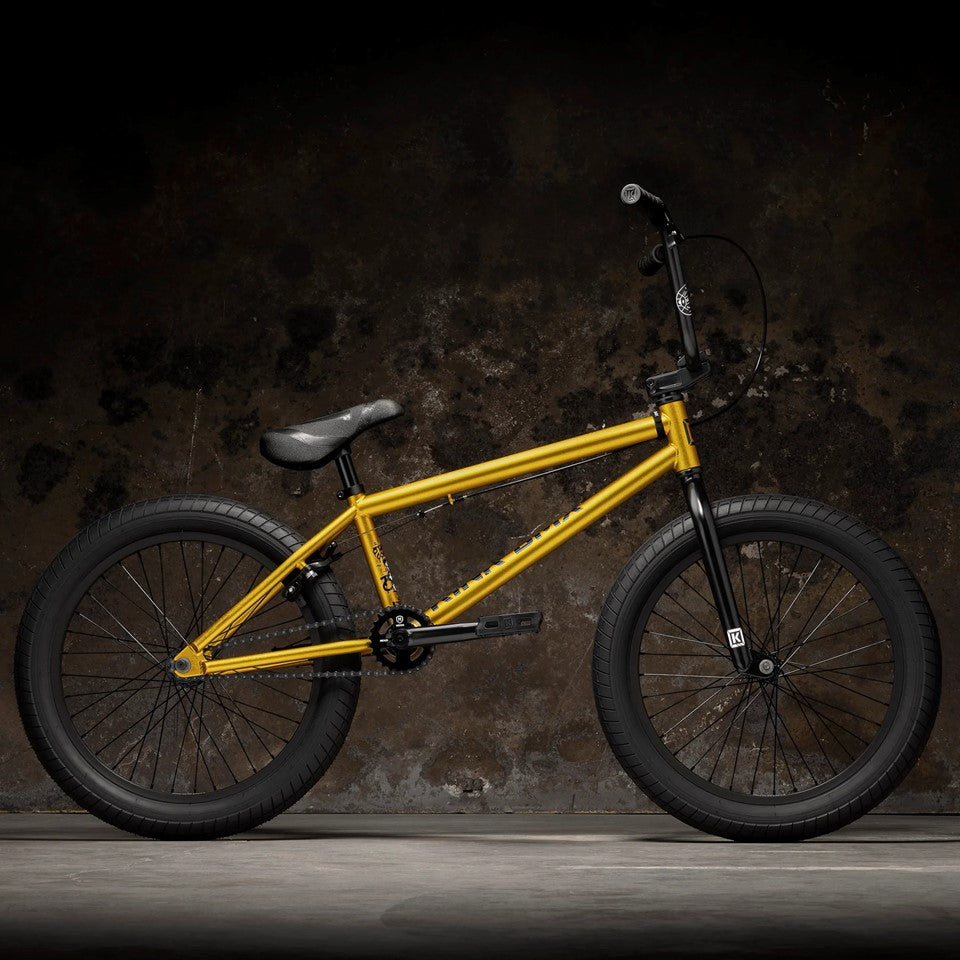

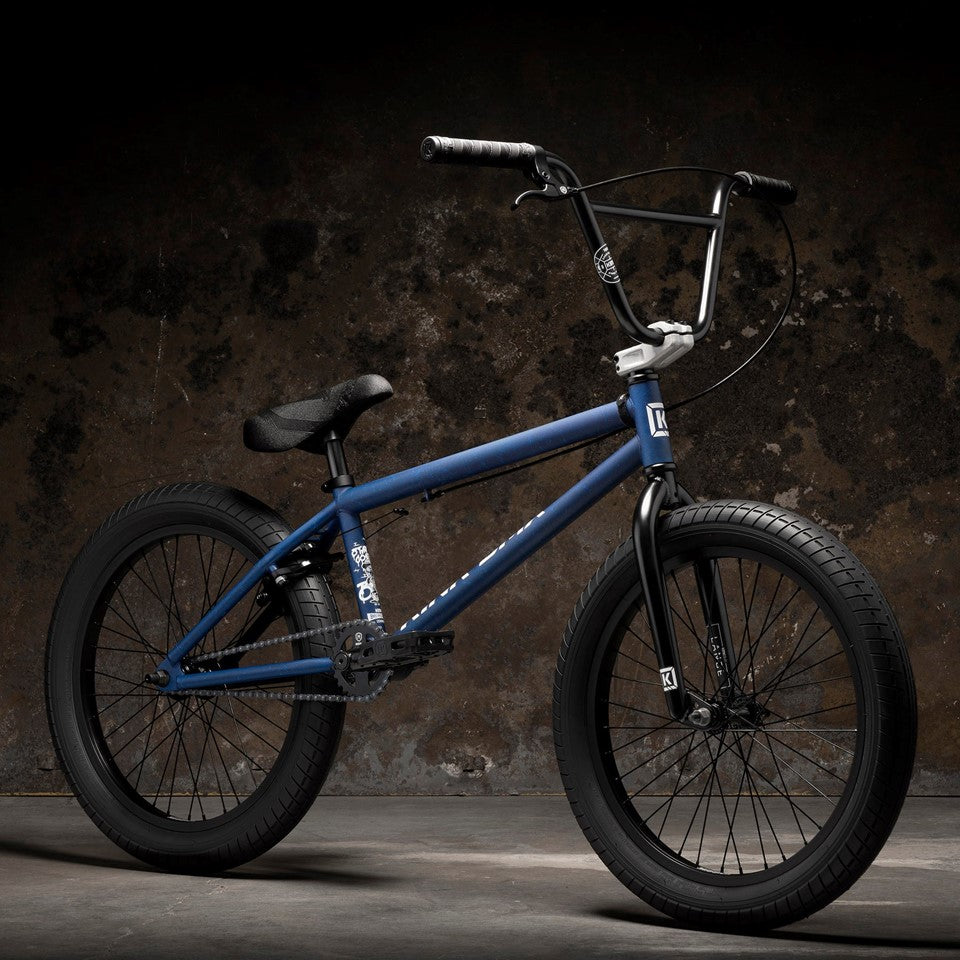

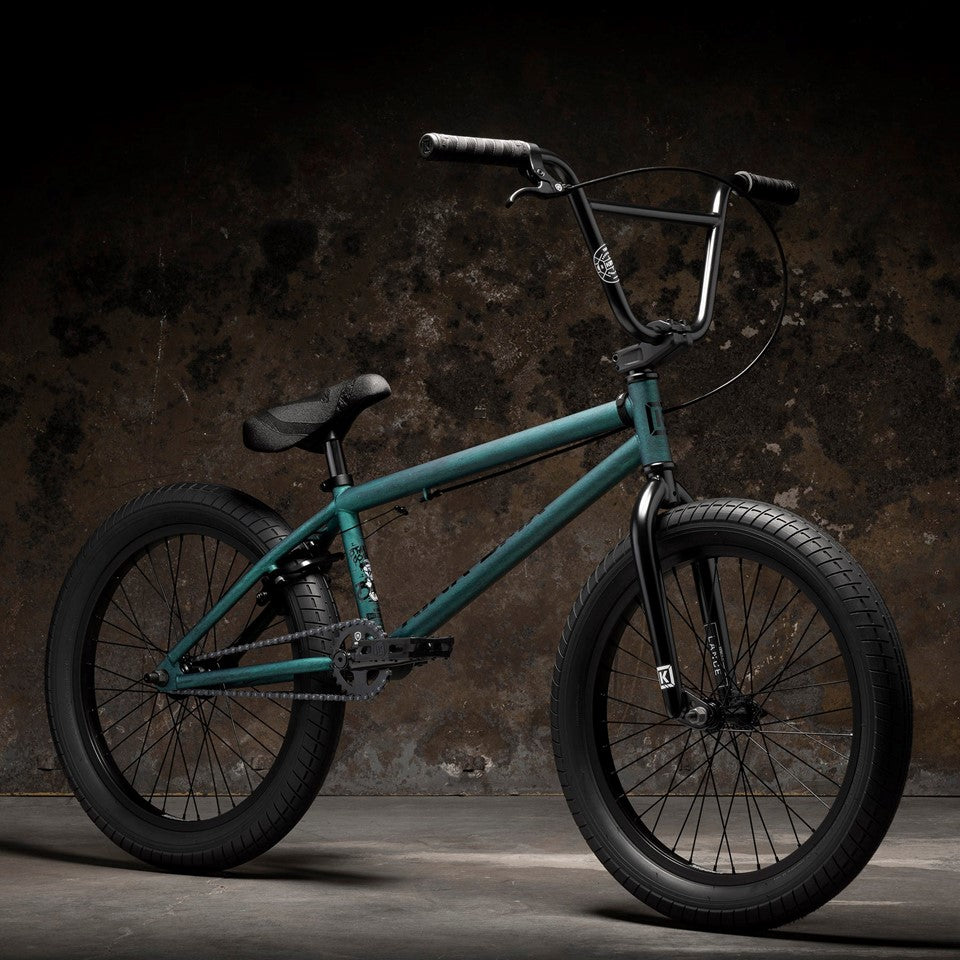

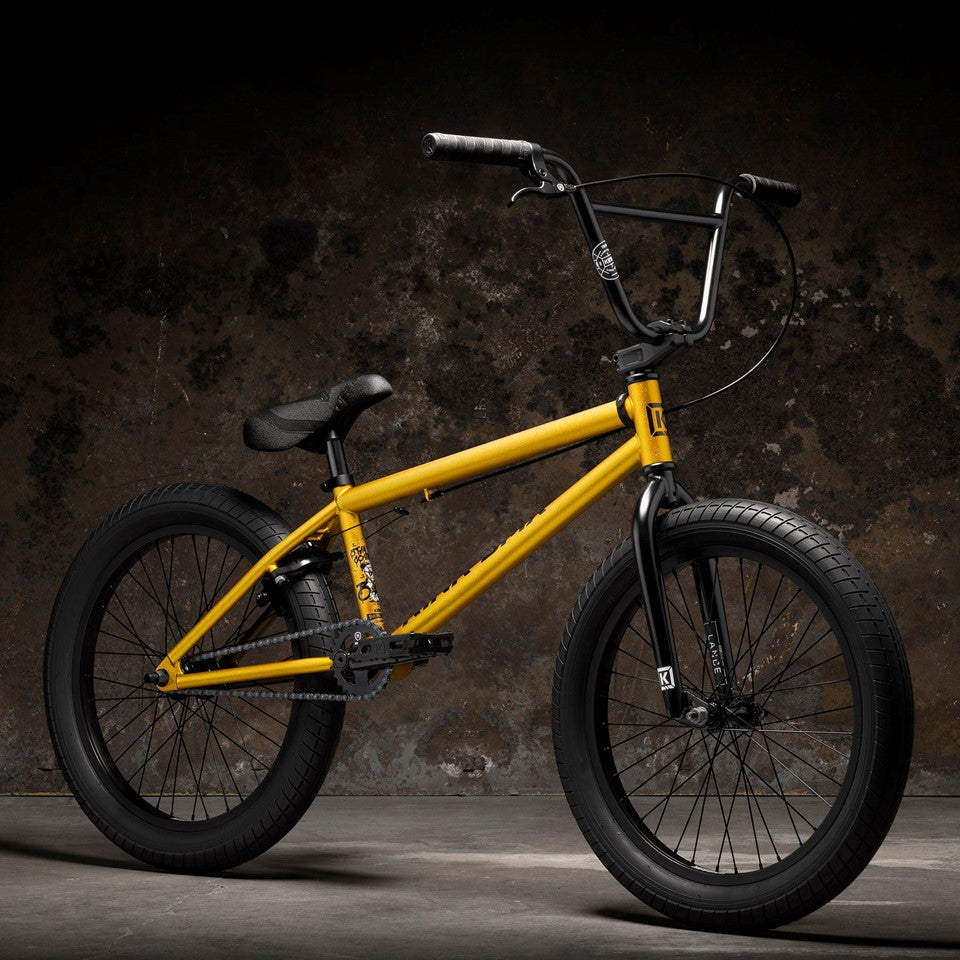

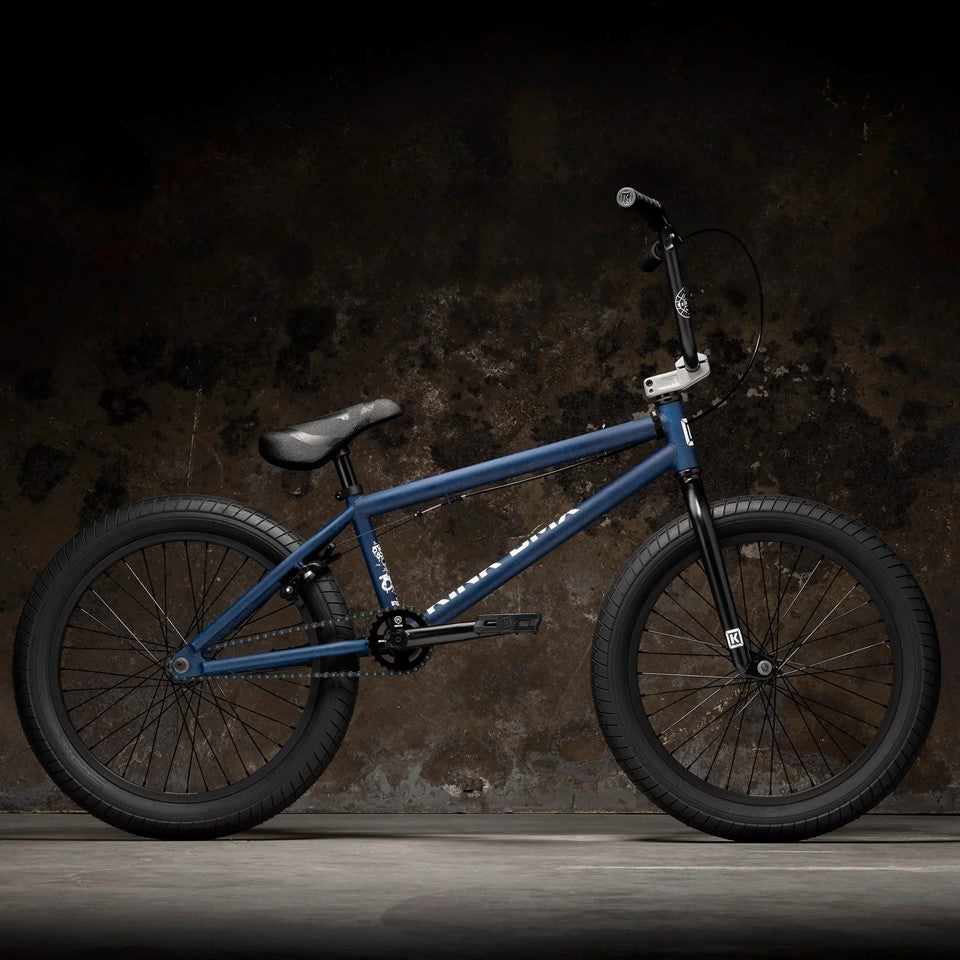

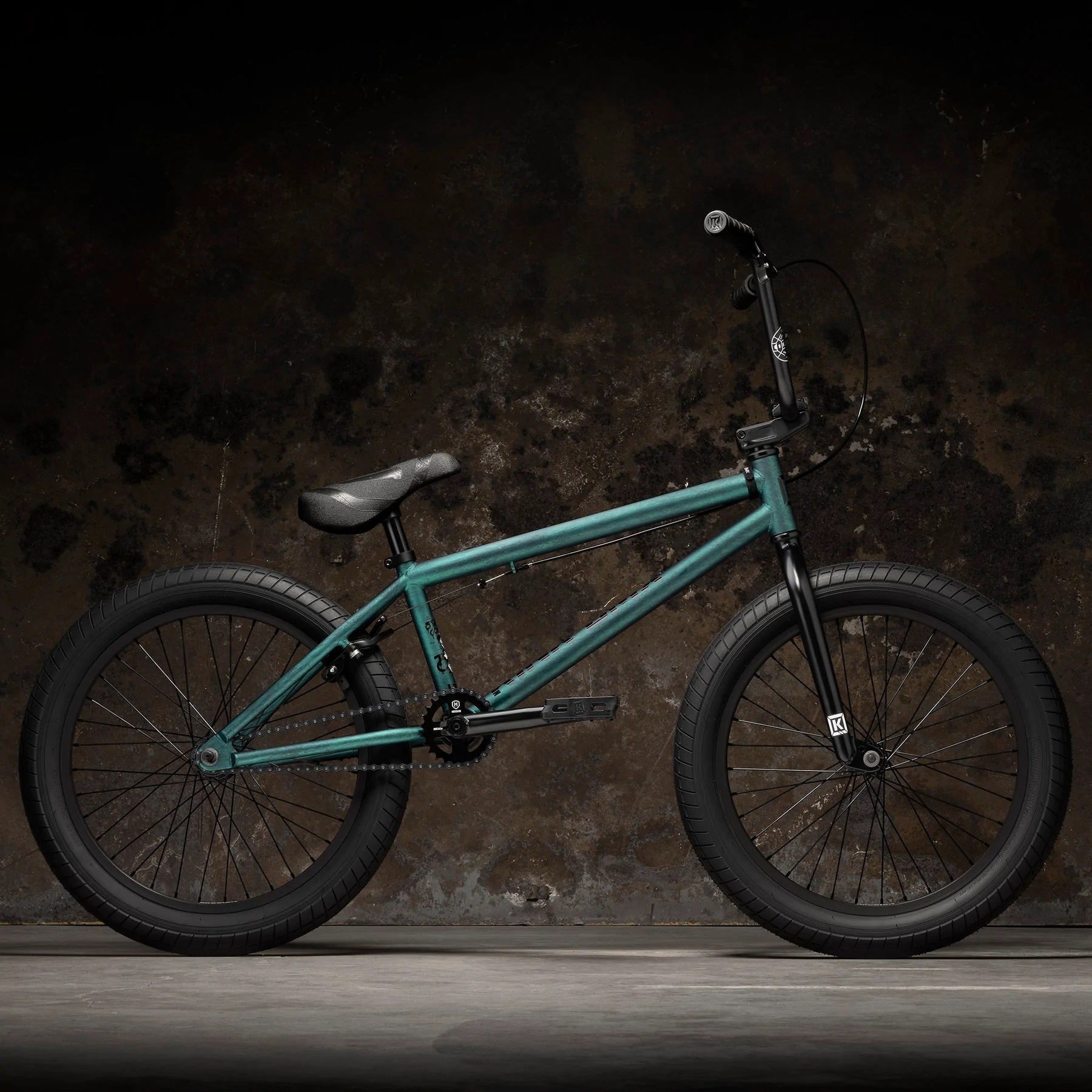

The 2023 Curb, which is available in four great colorways, offers the entry-level rider a bike that looks and feels like a pro model without the price tag. Whether you choose Matte Midnight Black, Matte Gold Leaf, Matte Alps Blue, or Matte Mica Green, you are getting an amazing bike.
Featuring modern geometry and outfitted with components such as 8.75” Kink T875 bars, 3-piece tubular chromoly cranks, a raised Mission Control topload stem, softer Kink Ace grips with push-in Kink Thrust bar ends, and 2.4” tires front and rear; the Curb is perfect for any rider looking for a solid first bike.
GEOMETRY
Toptube Length - 20"
Chainstay Length - 13.25"
Headtube Angle - 74.5°
Seattube Angle - 71°
Standover Height - 8.5"
Bottom Bracket Height - 11.6"
Fork Offset - 32mm
TECH SPECS
FRAME Kink Curb 100% Hi-Ten Steel
PEDALS Kink Hemlock
FORK Kink Lance 100% Hi-Ten Steel Tapered Fork Legs
CHAIN Mission 410
BARS Kink T875 8.75" 100% Hi-Ten Steel
SPROCKET Mission Breach 25T
GRIPS Kink Ace, Thrust Barends
SEAT Mission Warsaw Combo
STEM Mission Control TL 50mm
SEAT POST Mission Combo Steel Post
HEADSET Standard 1 1/8" Threadless
SEAT CLAMP Mission Slim Clamp
BRAKE LEVER Mission Token
FRONT HUB Mission Reserve Unsealed 3/8" Axle
BRAKE CABLE Mission L3 Linear
REAR HUB Mission Function Semi-Sealed Cassette 14mm
BRAKES Mission Cease V2
DRIVER 9T
CRANKS Mission Triumph 3pc Tubular Chromoly 170mm - 8 Spline
RIMS Mission X7
BOTTOM BRACKET Unsealed American 19mm
TIRES Mission Tracker 2.4"
PEGS N/A
WEIGHT 27lb 5oz
