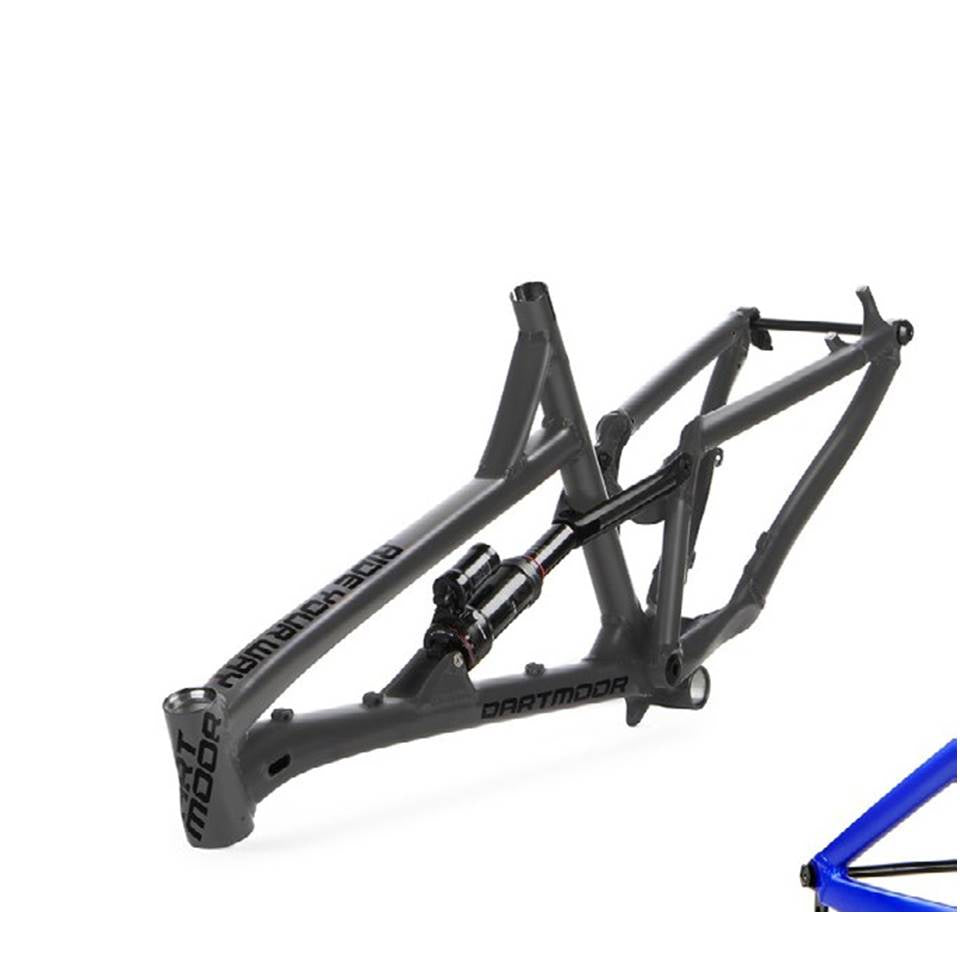

DART BLACKBIRD 27.5 W RS SUPER DELUX SELECT FRAME 2022

Blackbird 27.5
Enduro demands maximum versatility from a bike – difficult and long uphilling, downhilling in the most difficult conditions, jumps, and drops are the standard challenges that the equipment must face. Based on our own and our riders’ experience we placed a stiff single-pivot construction at the bike’s heart. This simple solution makes it possible to create a modern bike that fulfills the demands of even the most demanding riders. The advanced swingarm cage, consisting of 12 welded elements and tubes, is very stiff and the carefully designed pivot position allows high pedaling efficiency (with the antisquad parameter at about 100% pedal-bob effect is eliminated). The swingarm is connected to the front triangle with a super stiff 17mm axle, mounted on three Max type bearings packed with waterproof Mobil grease. The design of the shock mount yoke means a full-length seat tube can be used, enabling plenty of room for the new long travel dropper posts. The frame design is based on modern, progressive geometry suitable for 27.5" wheels with a low positioned BB, a relatively long front triangle, 65° head tube angle, and 160mm frame travel. The Blackbird climbs with ease but it will really come alive when shredding down.

New version of Blackbird 27.5 frame since the 2021 season is designed for

the 230x65mm metric shocks and 148x12mm Boost hubs.

Material: AL 6061-T6; Colors: matt Space Blue, matt Graphite/Black; Sizes:

S-XL; Shock options: w/o shock; w/RS Super Deluxe Select DebonAir; Frame

travel: 160mm; Recom. fork travel: 160-170mm; Shock size: 230x65mm;

Shock hardware: 22.2x8mm; Max tire size: 27.5x2.5"; Max chainring size:

34T; Hub size: 148x12mm; Post/clamp diam.: 30.9mm/34.9mm; Headset

type: IS42/IS52; Weight: 3.45kg (w/o shock).
