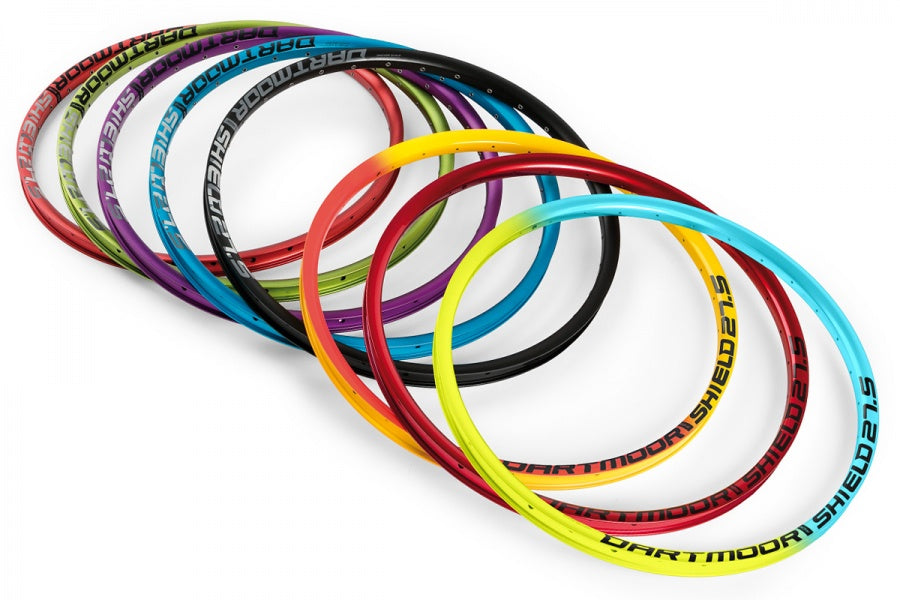

DARTMOOR - SHIELD RIMS

Our custom-designed disc brake rim is dedicated to those gravity riders who prize the strength and durability above anything else. The rim is made of the 6061 T6 aluminum with a strong sleeved joint connection. Thanks to its wide profile the tire stays safe on the rim even when riding through tight berms at low pressure. The thick side walls and wide lips minimize the risk of pinch flats. The Shield is designed for tires from 2.1" up to 2.5" wide.

SPECIFICATION
MATERIAL - Al-6061-T6
SIZE - 27.5"
WEIGHT - 633g (27.5"), 602g (26"), 550g (24")
COLORS - black anod., matt red anod., matt black with silver mirror stickers
SIZES - 27.5", 26", 24"
HOLES - 32, 36
OUTER WIDTH - 33mm
INNER WIDTH - 25.6mm
HEIGHT - 22mm
OSB - 1.5mm
ERD - 556mm (27.5"), 531mm (26"), 479mm (24")
JOINT - sleeved
