DARTMOOR BIKES

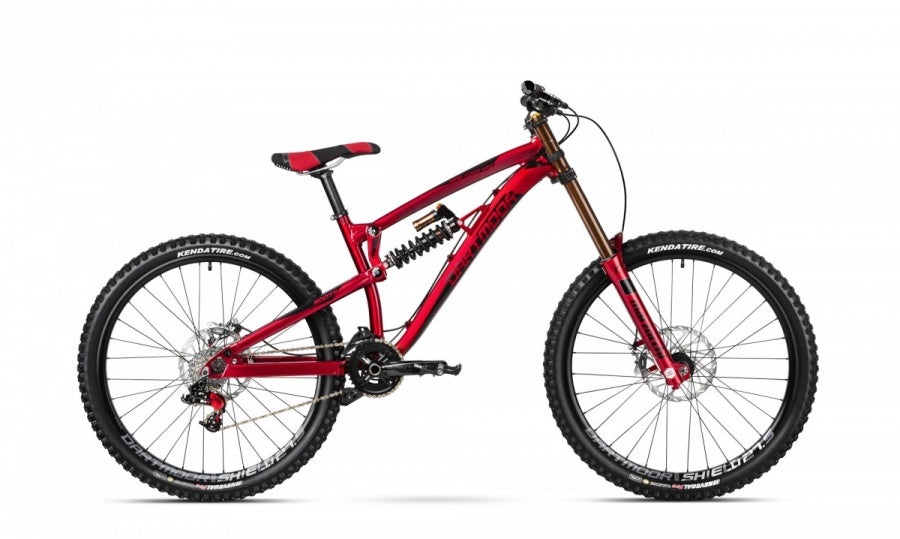

DART ROOTS PRO RED DEV 2017

DART ROOTS PRO RED DEV 2017

Regular price $6,912.00 SGD
Regular price Sale price $6,912.00 SGD
Sale Sold out
Size

Specifications

Product Dartmoor Roots Pro Red Devil Bike
Model Year 2017
Riding Type Downhill
Rider Unisex
Sizes and Geometry
Short, Long View Geometry
Wheel Size 27.5" (650b)
Frame Material Aluminum
Frame Material Details Aluminum 7005
Rear Travel 200mm
Rear Shock Marzocchi Moto C2R, 222mm x 69mm, spring 450
Fork Marzocchi 380 CR
Fork Travel 200mm
Head Tube Diameter Tapered
Headset Dartmoor Blink, IS42/IS52
Handlebar Dartmoor Nitro DH 780mm
Stem Dartmoor Rage v.2
Grips Dartmoor Roots
Brakes Avid Code with 203mm rotors
Brake Levers Avid Code
Drivetrain 1x
Shifters SRAM X5, 9-speed
Front Derailleur N/A
Rear Derailleur SRAM X9, 9-speed
ISCG Tabs ISCG05
Chainguide Steel
Cranks Truvativ Descendant, 175mm length
Chainrings 36 tooth
Bottom Bracket 73mm
Pedals Dartmoor Fever v.2
Chain 9-speed
Cassette SRAM PG–950, 11 x 28 tooth, 9-speed
Rims Dartmoor Shield, 32 hole, A/V
Hubs Front: Dartmoor Revolt Disc 20, 32 hole
Rear: Dartmoor Revolt Cassette 12mm x 150mm, 32 hole
Spokes Dartmoor Shield, 32 hole, A/V
Tires Kenda Nevegal Pro 2.35", folding
Saddle Dartmoor Roots
Seatpost Aluminum 6061, 300mm length
Seatpost Diameter 31.6mm
Seatpost Clamp Standard, 34.9mm
Rear Dropout / Hub Dimensions 12mm x 150mm
Max. Tire Size 27.5” x 2.5”
26” x 2.5”
Bottle Cage Mounts No
Colors Red devil
Warranty Contact distributor in the country where frame was purchased for details
Weight
  • 35 lb 4.4 oz (16,000 g)
  • 36 lb 4.3 oz (16,450 g)
Miscellaneous Recommended fork travel: 180mm - 200mm
1x drivetrain only
Price N/A
