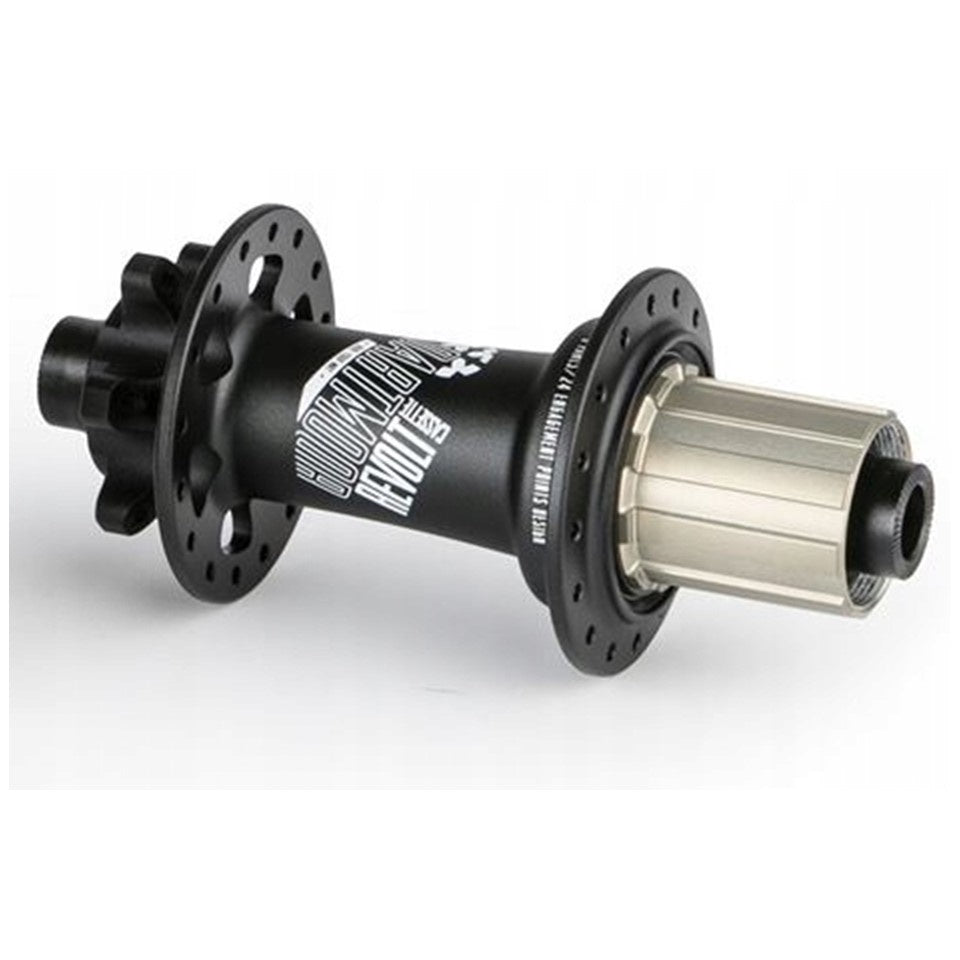

DARTMOOR - REVOLT CASSETTE REAR HUB A

DESCRIPTION

The hi-end rear cassette hub which was in our collection in the past few seasons.

Revolt Pro Cassette line supports following standards:- 135x10mm version (female version with 3/8” Cr–Mo hollow bolts),- 150x12mm version for Downhill machines, which can be easily converted to the 157x12mm standard after purchasing replaceable cones.

Revolt Pro line is equipped with hi-end Japanese EZO bearings. SRAM XD freehub is also available as optional spare part.

SPECIFICATION

Sizes: 150x12mm, 135x10mmBearings: 4 EZO precision sealed bearingsBearings type: body: 6902, freehub: 15268/6802Hub-shell: alu 6061-T6Axle: 15mm, hard anodized alu 7075-T6Bolts: hollow Cr-Mo 3/8”x24T, heat-treated for 17mm wrench or 8mm Allen key (only in 135x10mm female option)Cones: alu 7075-T6, push-in (both sides)Freehub: alu 7075-T6 (necessary to use freewheel with alu spider); SRAM XD version available as spare partPawls: 6 pawls design with 6 individual, double springsEngagement points: 30Holes: 36H, 32HWeight: 292g (150x12mm), 369g (135x10mm)
