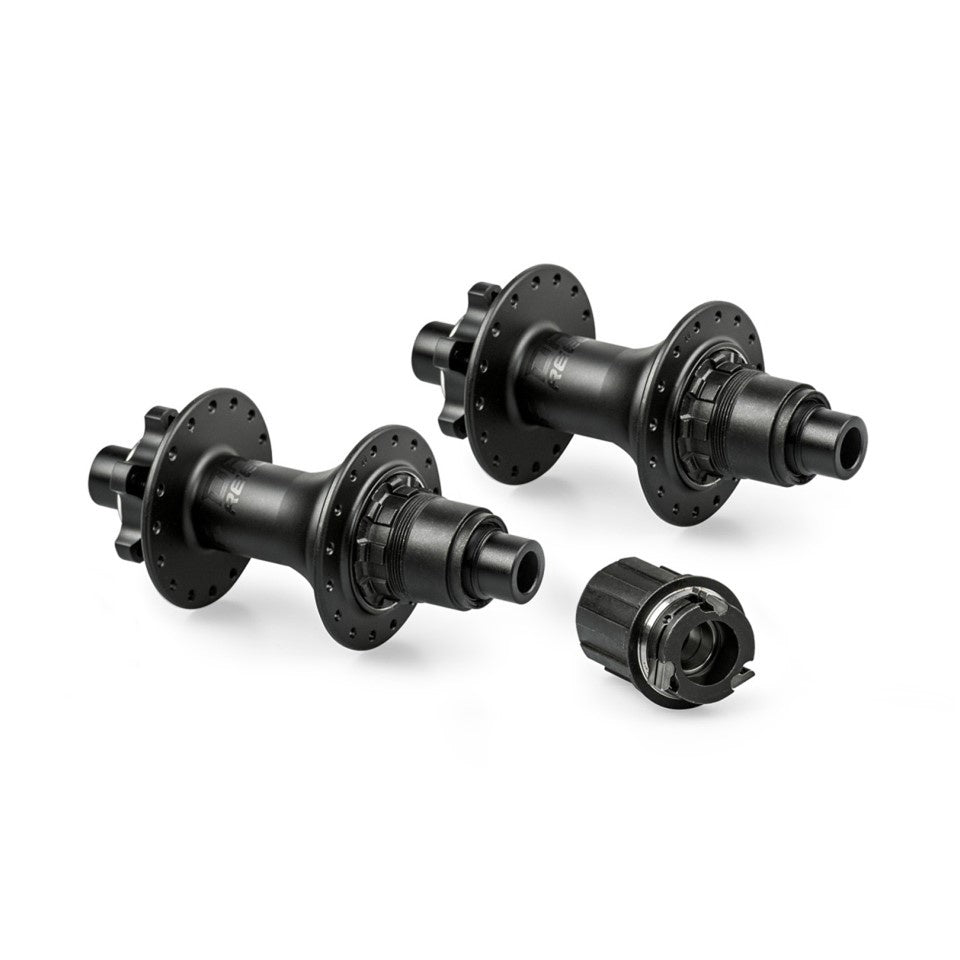

REEL V.2 REAR
DESCRIPTION
As with all our hubs, reliability is key! Reel v.2 hubs are designed for Trail, Enduro and Freeride use. Equipped with reliable steel freehub with 3-pawls system. They have 5 high-quality sealed bearings with custom selected Mobil waterproof grease and full contact seals. These hubs are available either in 148x12mm Boost size or 142/135x12mm size with common Shimano HG or SRAM XD freehubs. Thanks to the QR adapter available as a spare part, this hub can be also transformed from 135x12mm to 135x10mm size.
The second generation of Reel rear hubs has a third bearing added inside the freehub body to increase durability when working with a 12-speed drivetrain and cassettes with the biggest cog size 50T or more.
SPECIFICATION
WEIGHT - 445g (148x12mm); 433g (135/142x12mm)
COLORS - Black anod.
SIZES - 148x12mm; 142/135x12mm
HOLES - 32H
BEARINGS - 5 precision sealed bearings with high-density grease and full contact sealings
BEARINGS TYPE - body: 2x6902; freehub Shimano Hg: 3x6902; freehub SRAM XD: 3x15267
HUB-SHELL - AL 6061–T6
AXLE - 15mm, cr-Mo CONES AL 7075–T6, push–in (both sides)
FREEHUB - cr-Mo steel, common Shimano Hg or SRAM XD
PAWLS - 3 pawls
ENGAGEMENT POINTS - 38
